MB89151

Features:

• F2MC-8L family CPU core
• Dual-clock system
• High-speed processing at low voltage
• Minimum execution time: 0.95 ms/2.7 V, 1.33 ms/2.2 V
• I/O ports: max. 43 channels
• 21-bit time-base timer
• 8/16-bit timer/counter: 1 channel (8 bits ´ 2 channels)
• 8-bit serial I/O: 1 channel
• LCD controller/driver: Max. 36 segments ´ 4 commons (built-in booster)
• Remote control transmission output
• Buzzer output
• Watch prescaler (15 bits)
• External interrupts (wake-up function)
   Four independent channels with edge detection function plus eight level-interrupt channels

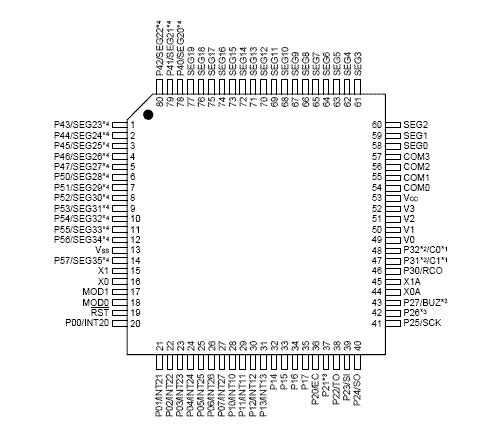

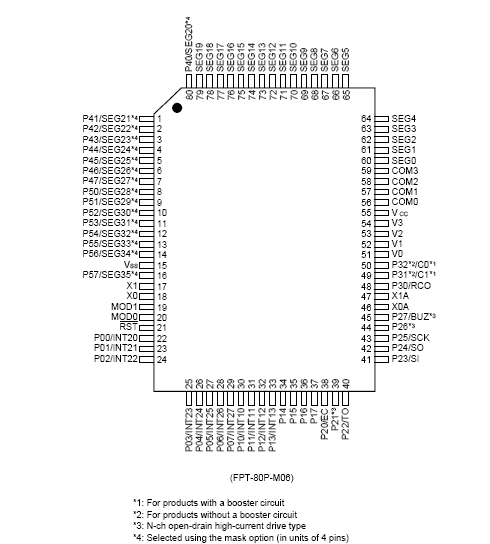

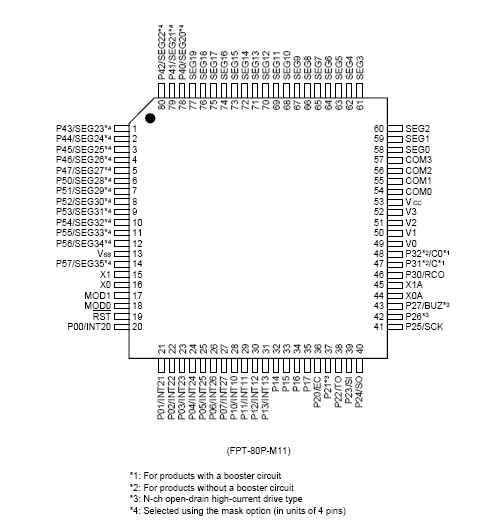

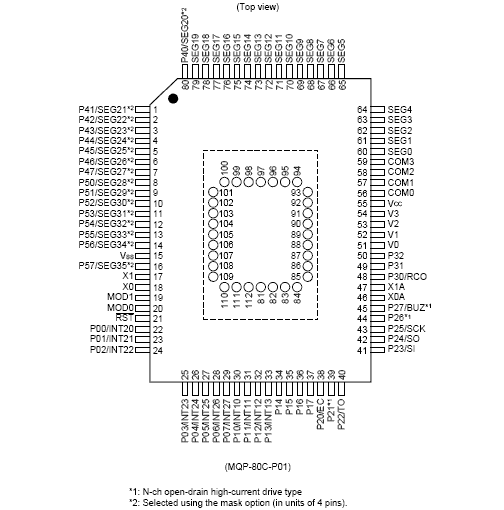

Pinout




Description

The MB89151 has been developed as general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers.
In addition to a compact instruction set, the MB89151 series microcontrollers contain a variety of peripheral functions such as dual-clock control system, five operating speed control stages, timers, a serial interface, a remote control transmission output, external interrupts, an LCD controller/driver, an LCD booster, and a watch prescaler.
*: F2MC stands for FUJITSU Flexible Microcontroller.
