M29F040B

Features: ` SINGLE 5V ± 10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS` ACCESS TIME: 45ns` PROGRAMMING TIME 8 s per Byte typical` 8 UNIFORM 64 Kbytes MEMORY BLOCKS` PROGRAM/ERASE CONTROLLER Embedded Byte Program algorithm Embedded Multi-Block/Chip Erase algorithm Status Register Po...

product image

M29F040B Picture
See larger image
SeekIC No. : 004404367 Detail

M29F040B: Features: ` SINGLE 5V ± 10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS` ACCESS TIME: 45ns` PROGRAMMING TIME 8 s per Byte typical` 8 UNIFORM 64 Kbytes MEMORY BLOCKS` PROGRAM/ERASE CON...

M29F040B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M29F040B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` SINGLE 5V ± 10% SUPPLY VOLTAGE for
   PROGRAM, ERASE and READ OPERATIONS
` ACCESS TIME: 45ns
` PROGRAMMING TIME
8 s per Byte typical
` 8 UNIFORM 64 Kbytes MEMORY BLOCKS
` PROGRAM/ERASE CONTROLLER
Embedded Byte Program algorithm
Embedded Multi-Block/Chip Erase algorithm
Status Register Polling and Toggle Bits
` ERASE SUSPEND and RESUME MODES
Read and Program another Block during Erase Suspend
` UNLOCK BYPASS PROGRAM COMMAND
Faster Production/Batch Programming
` LOW POWER CONSUMPTION
Standby and Automatic Standby
` 100,000 PROGRAM/ERASE CYCLES per BLOCK
` 20 YEARS DATA RETENTION
Defectivity below 1 ppm/year
` ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: E2h
` ECOPACK® PACKAGES AVAILABLE


Pinout

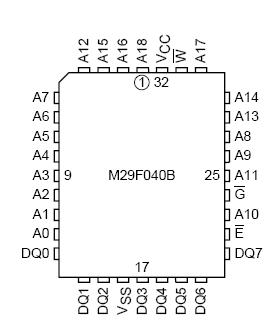

Connection Diagram


Specifications

Symbol Parameter Value Unit
TA Ambient Operating Temperature (Temperature Range Option 1) 0 to 70 °C
Ambient Operating Temperature (Temperature Range Option 6) 40 to 85
Ambient Operating Temperature (Temperature Range Option 3) 40 to 125
TBIAS Temperature Under Bias 50 to 125 °C
TSTG Storage Temperature 65 to 150 °C
VIO Input or Output Voltage (except A9) 0.6 to 6 V
VCC Supply Voltage 0.6 to 6 V
VID Identification Voltage 2 to 13.5 V
Note: 1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings" may
cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions
above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions
for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality
documents.
2. Minimum Voltage may undershoot to 2V during transition and for less than 20ns during transitions.
