Product Details

Description



Features:

`  Single 5 V supply and high density 22-pin DIP and 24-pin SOJ
`  High speed: Fast access time 25/35/45/55/70 ns (max)
`  Low power
     - Operation: 300 mW (typ)
     - Standby: 100 W (typ)/10 mW (typ) (L-version)
`  Completely static memory
`  No clock or timing strobe required
`  Equal access and cycle times
`  Directly TTL compatible: All inputs and outputs
`  Battery backup capability (L-version)

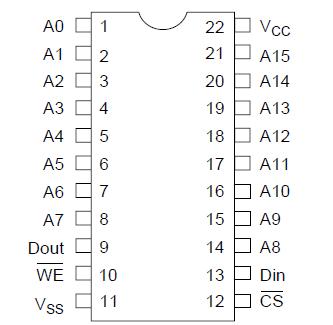

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on any pin relative to VSS
VT
0.5* to +7.0
V
Power dissipation
PT
1.0
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Storage temperature under bias
Tbias
10 to +85
°C
Note:
VT min: 3.5 V for pulse width 20 ns (HM6287 Series)
VT min: 2.0 V for pulse width 10 ns (HM6287H Series)




Description

The Hitachi HM6287/HM6287H is a high speed 64 k static RAM organized as 64-kword ×1-bit. It realizes high speed access time (25/35/45/55/70 ns) and low power consumption, employing CMOS process technology and high speed circuit design technology. It is most advantageous for high speed and high density memory, such as cache memory for mainframes or 32-bit MPUs. The HM6287/HM6287H is packaged in a 300-mil plastic DIP and SOJ, and is available for high density mounting. The low power version retains data with battery backup.
