CAT28F010

Features: ` Fast Read Access Time: 70/90/120 ns` Low Power CMOS Dissipation:Active: 30 mA max (CMOS/TTL levels)Standby: 1 mA max (TTL levels)Standby: 100 mA max (CMOS levels)` High Speed Programming:10 ms per byte2 Sec Typ Chip Program` 0.5 Seconds Typical Chip-Erase` 12.0V ± 5% Programming and Er...

product image

CAT28F010 Picture
See larger image
SeekIC No. : 004310612 Detail

CAT28F010: Features: ` Fast Read Access Time: 70/90/120 ns` Low Power CMOS Dissipation:Active: 30 mA max (CMOS/TTL levels)Standby: 1 mA max (TTL levels)Standby: 100 mA max (CMOS levels)` High Speed Programming...

CAT28F010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CAT28F010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Fast Read Access Time: 70/90/120 ns
` Low Power CMOS Dissipation:
Active: 30 mA max (CMOS/TTL levels)
Standby: 1 mA max (TTL levels)
Standby: 100 mA max (CMOS levels)
` High Speed Programming:
10 ms per byte
2 Sec Typ Chip Program
` 0.5 Seconds Typical Chip-Erase
` 12.0V ± 5% Programming and Erase Voltage
` Stop Timer for Program/Erase
` Commercial, Industrial and Automotive
Temperature Ranges
` On-Chip Address and Data Latches
` JEDEC Standard Pinouts:
32-pin DIP
32-pin PLCC
32-pin TSOP (8 x 20)
` 100,000 Program/Erase Cycles
` 10 Year Data Retention
` Electronic Signature




Pinout

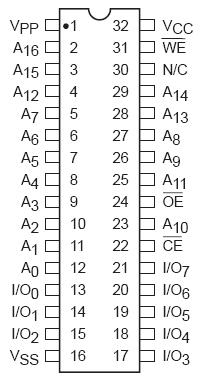

Connection Diagram




Specifications

Temperature Under Bias ........................ 55°C to +95°C
Storage Temperature .......................... 65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1) .................. 2.0V to +VCC + 2.0V
Voltage on Pin A9 with
Respect to Ground(1) ........................... 2.0V to +13.5V
VPP with Respect to Ground
during Program/Erase(1) .............. .......2.0V to +14.0V
VCC with Respect to Ground(1) ............. 2.0V to +7.0V
Package Power Dissipation
Capability (TA = 25°C) ......................................... 1.0 W
Lead Soldering Temperature (10 secs) ............... 300°C
Output Short Circuit Current(2) ......................... 100 mA




Description

The CAT28F010 is a high speed 128K x 8-bit electrically erasable and reprogrammable Flash memory ideally suited for applications requiring in-system or after-sale code updates. Electrical erasure of the full memory contents is achieved typically within 0.5 second.

CAT28F010 is pin and Read timing compatible with standard EPROM and E2PROM devices. Programming and Erase are performed through an operation and verify algorithm. The instructions are input via the I/O bus, using a two write cycle scheme. Address and Data are latched to free the I/O bus and address bus during the write operation.

The CAT28F010 is manufactured using Catalyst's advanced CMOS floating gate technology. It is designed o endure 100,000 program/erase cycles and has a data retention of 10 years. The device is available in JEDEC pproved 32-pin plastic DIP, 32-pin PLCC or 32-pin SOP packages.
