Features: Organization: 4,194,304 words X 4 bits
Part Identification
- A42U2604 (2K Ref.)
Single 2.5V power supply/built-in VBB generator
Low power consumption
- Operating: 70mA (-50 max)
- Standby: 0.5mA (TTL), 0.2mA (CMOS), 300|A (Self-refresh current)
High speed
- 50/60/80 ns RAS access time
- 22/27/37 ns column address access time
- 13/15/20 ns CAS access time
- 20/24/32 ns EDO Page Mode Cycle Time
Industrial operating temperature range: -40C to +85C for -U
Fast Page Mode with Extended Data Out
2K Refresh Cycle in 32ms
Read-modify-write,RAS-only,CAS -before- ,RAS Hidden refresh capability
TTL-compatible, three-state I/O
JEDEC standard packages
- 300mil, 24/26-pin SOJ
- 300mil, 24/26-pin TSOP type II package

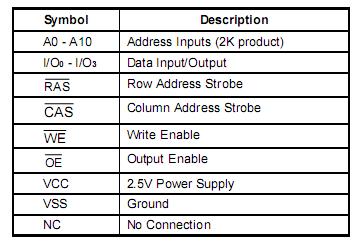

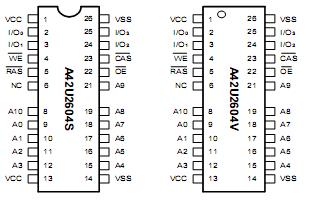

Pinout
SpecificationsInput Voltage (Vin) . . . . . . . . . . . . . . . -0.5V to VCC+0.5V
Output Voltage (Vout) . . . . . . . . . . . . . -0.5V to VCC+0.5V
Power Supply Voltage (VCC) . . . . . . . -0.5V to VCC+0.5V
Operating Temperature (TOPR) . . . . . . . . . . 0C to +70C
Storage Temperature (TSTG) . . . . . . . . . -55C to +150C
Soldering Temperature X Time (TSOLDER) . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260C X 10sec
Power Dissipation (PD) . . . . . . . . . . . . . . . . . . . . . . . . 1W
Short Circuit Output Current (Iout) . . . . . . . . . . . . . . 50mA
Latch-up Current . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
DescriptionThe A42U2604 is a new generation randomly accessed memory for graphics, organized in a 4,194,304-word by 4-bit configuration. This product can execute Write and Read operation via CAS pin.
The A42U2604 offers an accelerated Fast Page Mode cycle with a feature called Extended Data Out (EDO).
This allow random access of up to 2048(2K Ref.) words within a row at a 50/42/31 MHz EDO cycle, making the A42U2604 ideally suited for graphics, digital signal processing and high performance computing systems.
A42U2604 Data Sheet
