A42U0616

 Organization: 1,048,576 words X 16 bits
Part Identification
- A42U0616 (1K Ref.)
Single 2.5V power supply/built-in VBB generator
Low power consumption
- Operating: 120mA (-50 max)
- Standby: 1mA (TTL), 0.2mA (CMOS),
                  250A (Self-refresh current)
High speed
 - 50/60/80 ns RAS access time
  - 25/30/40 ns column address access time
- 13/15/20 ns CAS access time
- 20/25/35 ns EDO Page Mode Cycle Time
 Separate CAS (UCAS ,LCAS) for byte selection

 Fast Page Mode with Extended Data Out
 Read-modify-write,RAS -only, CAS -before- RAS,Hidden refresh capability
TTL-compatible, three-state I/O

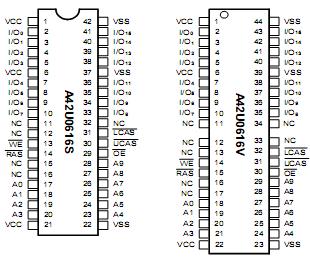

JEDEC standard packages
-  400mil, 42-pin SOJ
-  400mil, 50/44 TSOP type II package

 Input Voltage (Vin) . . . . . . . . . . . . . . .  -0.5V to VCC+0.5V
Output Voltage (Vout) . . . . . . . . . . . . . -0.5V to VCC+0.5V
Power Supply Voltage (VCC) . . . . . . .   -0.5V to VCC+0.5V
Operating Temperature (TOPR) . . . . . . . . . .    0C to +70C
Storage Temperature (TSTG) . . . . . . . . .     -55C to +150C
Soldering Temperature X Time (TSOLDER) . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .     260C X 10sec
Power Dissipation (PD) . . . . . . . . . . . . . . . . . . . . . . . .   1W
Short Circuit Output Current (Iout) . . . . . . . . . . . . . .  50mA
Latch-up Current . . . . . . . . . . . . . . . . . . . . . . . . . .    200mA

The A42U0616 is a new generation randomly accessed memory for graphics, organized in a 1,048,576 -word by 16-bit configuration. This product can execute Write and  Read operation via CAS pin.

The A42U0616 offers an accelerated Fast Page Mode cycle with a feature called Extended Data Out (EDO). This allow random access of up to 1024(1K Ref.) words within a row at a 50/40/28 MHz EDO cycle, making the A42U0616 ideally suited for graphics, digital signal processing and high performance computing systems.
