ZXMHC6A07T8

Features: • Low On - Resistance• Fast switching speed• Low threshold• Low gate drive• SM8 packageApplication• Motor drivePinoutSpecifications PARAMETER SYMBOL N-Channel P-Channel UNIT Drain-Source Voltage VDSS 60 -60 V Gate Source Voltage VGS...

product image

ZXMHC6A07T8 Picture
See larger image
SeekIC No. : 004552461 Detail

ZXMHC6A07T8: Features: • Low On - Resistance• Fast switching speed• Low threshold• Low gate drive• SM8 packageApplication• Motor drivePinoutSpecifications PARAMETER SYMB...

ZXMHC6A07T8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZXMHC6A07T8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low On - Resistance
• Fast switching speed
• Low threshold
• Low gate drive
• SM8 package




Application

• Motor drive




Pinout

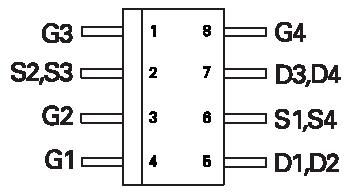

Connection Diagram




Specifications

PARAMETER SYMBOL N-Channel P-Channel UNIT
Drain-Source Voltage VDSS 60 -60 V
Gate Source Voltage VGS ± 20 ± 20 V
Continuous Drain Current@VGS=10V; TA=25°C (b)(d)
@VGS=10V; TA=70°C (b)(d)
@VGS=10V; TA=25°C (a)(d)
 ID 1.8
1.4
1.6		 -1.5
-1.2
-1.3		 A
Pulsed Drain Current (c) IDM 8.7 -7.5 A
Continuous Source Current (Body Diode) (b) IS 2.3 -2.1 A
Pulsed source current (body diode) (c) ISM 8.7 -7.5 A
Power Dissipation at TA=25°C (a)
Linear Derating Factor		 PD 1.3
10.4		 W
mW/°C
Power Dissipation at TA=25°C (b)
Linear Derating Factor		 PD 1.7
13.6		 W
mW/°C
Operating and Storage Temperature Range Tj:Tstg -55 to +150 °C





Description

This new generation of trench MOSFETs ZXMHC6A07T8 from Zetex utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
