Product Details

Description



Features:

• Low profile SC70-6 pin package
• Internal PWM filter for adjustable output
• High efficiency (85% typ)
• Wide input voltage range: 2.5V to 5.5V
• Up to 250mA output current at 5V
• Low quiescent current: (60A typ)
• 100nA maximum shutdown current
• Up to 1MHz switching frequency
• Low external component count




Application

• LCD and OLED bias
• Cellular / mobile phones
• Digital cameras
• PDAs
• LCD modules
• Varactor and PIN diode bias
• Palmtop computers

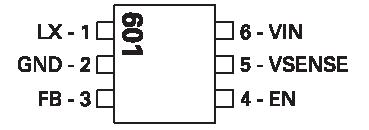

Pinout

Connection Diagram




Specifications

Part Number ZXLD1601
Type Boost
Min and Max Input Voltage (V) 2.5 ~ 5.5
Output Voltage (V) 2.5 to 28 ADJ
Output Current (A) 0.25
Frequency (Hz) typ 1Mhz
Efficiency (%) 85
Standby Quiescent Current (uA) typ 60


Input voltage (VIN). . . . . . . . . . . . . . . . .. .. .7V
LX output voltage (VLX). . . . . . . . . . . . . . . . .30V
Switch output current (ILX). . . . . . . . . . . .500mA
Power dissipation (PD). . . . . . . . . . . . . . .300mW
Operating temperature (TOP). . . . .-40 to 85°C
Storage temperature (TST). . . . . .-55 to 150°C
Junction temperature (Tj MAX). . . . . . . . .125°C




Description

The ZXLD1601 is a PFM inductive boost converter designed to provide output voltages of up to 28V from a 2.5V to 5.5V input supply.

The ZXLD1601 includes the output switch and peak current sense resistor, and can provide up to 10mA output current at maximum output voltage. Higher current is available at lower output voltages. Quiescent current is typically 60A and a shutdown function is provided to reduce this current to less than 100nA in the 'off' state.

Output voltage is set to a nominal value between 26V and 28V, by an internal resistor network, but can be adjusted to lower values by external resistors, an external PWM control signal applied to the 'Enable' pin, or a combination of the two. Depending upon the control frequency, the PWM signal will provide either continuous (low ripple) or gated control. The PWM filter components are contained within the chip.

Minimum output voltage is determined by the input supply.

The device is assembled in a low profile SC70-6 pin package.
