ZXCT1011

Features: Accurate high-side current sensing 2.5V to 20V supply range 4 A quiescent current 1% typical accuracy Package SOT23-5 Temperature range -40 to 125°CApplication Automotive current measurement Battery management DC motor and solenoid control Over current monitor Power managementPinoutSpec...

product image

ZXCT1011 Picture
See larger image
SeekIC No. : 004552363 Detail

ZXCT1011: Features: Accurate high-side current sensing 2.5V to 20V supply range 4 A quiescent current 1% typical accuracy Package SOT23-5 Temperature range -40 to 125°CApplication Automotive current measurem...

ZXCT1011 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZXCT1011
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Accurate high-side current sensing
2.5V to 20V supply range
4 A quiescent current
1% typical accuracy
Package SOT23-5
Temperature range -40 to 125°C




Application

Automotive current measurement
Battery management
DC motor and solenoid control
Over current monitor
Power management




Pinout

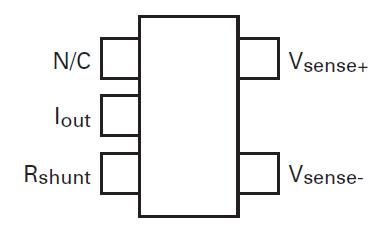

Connection Diagram




Specifications

Part Number ZXCT1011
Accuracy @ Vsense =100mV % 0.025
Bandwidth (typ) (MHz) 1.5
Description Micro-Power High-side Current Monitor w/Improved Temperature drift
Gain Output/Vsense 10mA/V
IS- S- Input Current (nA)
Operating Ambient Temp Range (°C) -40 to +125
Quiescent Current (uA) 4
Release Date
S+ Common-mode sense voltage range (V) 2.5 ~ 20
Sense Voltage (Vmax) 2500mV
Special Features Ground Pin + External transconductance resistor + Extended Temp Range
Type Current output
VCC/VB Supply Voltage Range (V)


Vsense+ 20 V
Voltage on any pin 0.6V and Vsense+ +0.5V
Vsense+ to Vsense- 2.5V
Operating temperature-40 to 125°C
Storage temperature -55 to 150°C
Maximum junction temperature 150°C
Package power dissipation 300mW at TA = 25°C (De-rate to zero at 150°C)

Operation above the absolute maximum rating may cause device failure. Operation at the absolute maximum ratings, for extended periods, may reduce device reliability.




Description

The ZXCT1011 is a high side current sense monitor. Using this type of device eliminates the need to disrupt the ground plane when sensing a load current.

The ZXCT1011 takes the voltage developed across a current shunt resistor and translates it into a proportional output current.

A user defined output resistor scales the output current into a ground referenced voltage. A current reference resistor, external to the IC, results in an improved temperature coefficient compared to the ZXCT1009.

The wide input voltage range of 20V down to as low as 2.5V make it suitable for a range of applications. With a minimum operating current of just 4uA, combined with its SOT23-5 package make it suitable for portable battery equipment too.
