ZL70010

Features: • Extremely fast turn-on• Very small size and very low leakage• 5, 6 and 7 terminals available• Standard delivery form: solder bumped die• Facilitates compliance with EN-45502 and EN- 50061Application• Pacemakers, Implantable Cardioverter Defibrillator...

product image

ZL70010 Picture
See larger image
SeekIC No. : 004551105 Detail

ZL70010: Features: • Extremely fast turn-on• Very small size and very low leakage• 5, 6 and 7 terminals available• Standard delivery form: solder bumped die• Facilitates complia...

ZL70010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZL70010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Extremely fast turn-on
• Very small size and very low leakage
• 5, 6 and 7 terminals available
• Standard delivery form: solder bumped die
• Facilitates compliance with EN-45502 and EN- 50061


Application

• Pacemakers, Implantable Cardioverter Defibrillators (ICDs), Neurostimulators, Bladder Control Devices
• Medical devices with electronics requiring protection against a high voltage surge


Pinout

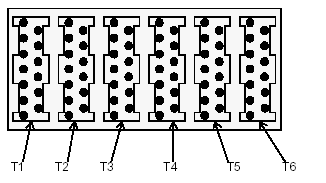

Connection Diagram




Specifications
Parameter
Sym
Min
Max
Units
Test Conditions
1
 Storage Temperature range
TS
-40
125
2
 Maximum junction temperature
Tj
125
3
 Maximum surge current
ITSM
8
A
Test according to Figure 11. tp for flip mounted chips with underfill:
10 ms
4
 Continuous power dissipation
Pmax
300
mW
t>1 s
*Exceeding these values may cause permanent damage. Functional operations under these conditions is
  not implemented


Description

The ZL70002/08/09/ZL70010 family are high performance surge protection devices targeted for medical applications.
