Product Details

Description



Features:

• Extremely fast turn-on
• Very small size and very low leakage
• 5, 6 and 7 terminals available
• Standard delivery form: solder bumped die
• Facilitates compliance with EN-45502 and EN- 50061


Application

• Pacemakers, Implantable Cardioverter Defibrillators (ICDs), Neurostimulators, Bladder Control Devices
• Medical devices with electronics requiring protection against a high voltage surge


Pinout

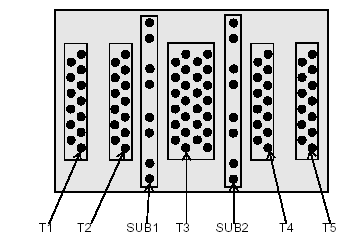

Connection Diagram




Specifications
Parameter
Sym
Min
Max
Units
Test Conditions
1
 Storage Temperature range
TS
-40
125
2
 Maximum junction temperature
Tj
125
3
 Maximum surge current
ITSM
8
A
Test according to Figure 11. tp for flip mounted chips with underfill:
10 ms
4
 Continuous power dissipation
Pmax
300
mW
t>1 s
*Exceeding these values may cause permanent damage. Functional operations under these conditions is
  not implemented


Description

The ZL70002/ZL70008/09/10 family are high performance surge protection devices targeted for medical applications.
