Features:

• Very High Operating Speed
• Operation down to DC with Square Wave Input
• Low Phase Noise (Typically better than
  -152dBc/Hz at 10kHz)
• 5V Single Supply Operation
• Low Power Dissipation: 500mW (Typ)
• Surface Mount Plastic Package With Exposed
  Pad (See Application Notes


Application

• DC to 10 GHz PLL applications
• HyperLan
• LMDS
• Instrumentation
• Satellite Communications
• Fibre Optic Communications; OC48, OC192
• Ultra Low Jitter Clock Systems


Pinout

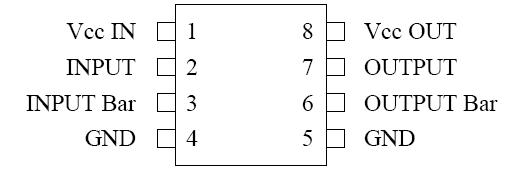

Connection Diagram


Specifications

  Parameter Symbol Min Max Units
1 Supply Voltage Vcc   6.5V
2 Prescaler Input Voltage     2.5 Vp-p
3 ESD protection (Static Discharge)     2 kV
4 Storage temperature TST -65 150 ºC
5 Maximum Junction Temp     125 ºC
6 Thermal Characteristics Thja   58.6 °C/W
multi-layer PCB



Description

Description The ZL40812DCF is one of a range of 5V supply, very high speed low power prescalers for professional applications with a fixed modulus of divide by 16. The dividing elements are static D type flip flops and therefore allow operation down to DC if the drive signal is a pulse waveform with fast risetimes. The output stage of ZL40812DCF has internal 50 ohm pull up giving a 1V p-p output. See application notes for more details.
