Features:

• Very High Operating Speed
• Operation down to DC with Square Wave Input
• Low Phase Noise (Typically better than -147dBc/Hz at 10kHz)
• 5V Single Supply Operation
• Low Power Dissipation: 480mW (Typ)
• Surface Mount Plastic Package With Exposed Pad (See Application Notes)


Application

• DC to 10 GHz PLL applications
• HyperLan
• LMDS
• Instrumentation
• Satellite Communications
• Fibre Optic Communications; OC48, OC192
• Ultra Low Jitter Clock Systems


Pinout

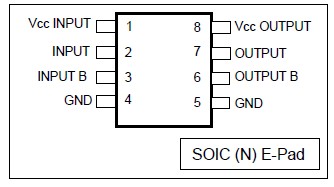

Connection Diagram


Specifications

  Parameter Symbol Min. Max. UNIT
1 Supply voltage VCC   6.5 V
2 Prescaler Input Voltage   2.5   Vp-p
3 ESD protection (Static Discharge)   2k   V
4 Storage temperature TST -65 +150
5 Maximum Junction Temp TJmax   +125
6 Thermal characteristics THja 58.6   /W
multi-layer PCB




Description

The ZL40810 is one of a range of 5V supply, very high speed low power prescalers for professional applications with a fixed modulus of divide by 8. The dividing elements are static D type flip flops and therefore allow operation down to DC if the drive signal is a pulse waveform with fast rise times. The output stage of ZL40810 has internal 50 ohm pull up giving a 1V p-p output. See application notes for more details.
