Product Details

Description



Features:

• 3.45V Single Supply Operation
• Low Power Dissipation: 210mW typ
• Broadband: DC to 6GHz
• SSB Phase Noise: 148dBc/Hz @ 10KHz
• Pout 3dBm


Application

• DC to 6 GHz PLL applications
• HyperLan
• LMDS
• Instrumentation
• Satellite Communications
• Fibre Optic Communications; OC48, OC192
• Ultra Low Jitter Clock Systems


Pinout

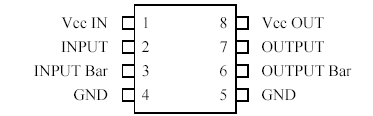

Connection Diagram


Specifications
Parameter
Symbol
Min
Max
Unit
Comments
1
 Supply voltage
Vcc
- 0.5
6
V
2
 RFin
12
dBm
3
 All I/O ports
- 0.5
Vcc+0.5
V
4
 Storage temperature
TST
-55
150
5
 ESD protection
2
kV
Mil-std 883B / 3015 cat1



Description

The ZL40804 are Bipolar 3.45V supply, very low power prescalers for professional applications with a fixed modulus of 4. The ultra low close in (10KHz offset) SSB phase noise performance is ideal for narrow band communications systems or systems with ultra low jitter budgets such as next generation fibre optic communications. The ZL40804 is broadband from DC to 6GHz.

See Figure 1 and Application Note for RF Prescalers for more details.
