Features: • 3.45V Single Supply Operation• Low Power Dissipation: 250mW typ• Broadband: DC to 6GHz• SSB Phase Noise: 147dBc/Hz @ 10KHz• Pout 0dBm• Surface Mount Plastic Package: 8 SOICApplication• DC to 6 GHz PLL applications• HyperLan• LMDS...

product image

ZL40803 Picture
See larger image
SeekIC No. : 004551000 Detail

ZL40803: Features: • 3.45V Single Supply Operation• Low Power Dissipation: 250mW typ• Broadband: DC to 6GHz• SSB Phase Noise: 147dBc/Hz @ 10KHz• Pout 0dBm• Surface Mount P...

ZL40803 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZL40803
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.45V Single Supply Operation
• Low Power Dissipation: 250mW typ
• Broadband: DC to 6GHz
• SSB Phase Noise: 147dBc/Hz @ 10KHz
• Pout 0dBm
• Surface Mount Plastic Package: 8 SOIC


Application

• DC to 6 GHz PLL applications
• HyperLan
• LMDS
• Instrumentation
• Satellite Communications
• Fibre Optic Communications; OC48, OC192
• Ultra Low Jitter Clock Systems


Pinout

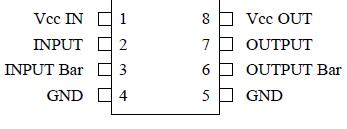

Connection Diagram


Specifications

Characteristic Min Max Units Comments
Supply Voltage (Vcc) -0.5 6 V
RFin   12 dBm
All I/O ports -0.5V Vcc+0.5 V
Storage Temperature -55 150
ESD protection 2KV     Mil-std 883B / 3015 cat1



Description

The ZL40803 are Bipolar 3.45V supply, very low power prescalers for professional applications with a fixed modulus of 2. The ultra low close in (1KHz offset) SSB phase noise performance is ideal for narrow band communications systems or systems with ultra low jitter budgets such as next generation fibre optic communications. The ZL40803 is broadband from DC to 6GHz.

See Figure 1 and Application Note for RF Prescalers for more details.
