Z9975

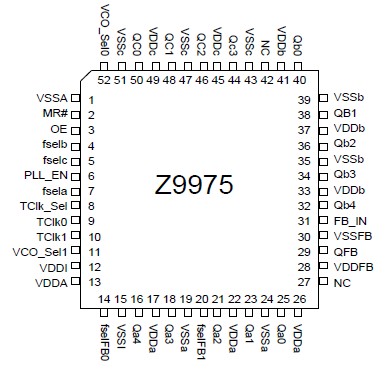

The Z9975 is a low cost 3.3V zero delay clock driver for high speed signal buffering and redistribution.

It provides the designer with the flexibility of selecting various Output/Input Frequency ratios selected by fsela, fselb, fselc, fselFB(0:1), and VCO_sel input settings.

The Z9975 integrates PLL technology for Zero delay propagation from Input to Output. The PLL feedback is externally available for propagation delay tuning and divide ratio alternatives as per table 1.

The Z9975 has three banks of outputs with independent divider stages. These dividers allow the banks to have different frequencies as per table 2.

TCLK0 and TCLK1 one are selectable input reference clocks and may be toggled dynamically during operation to provide modulation and phase shifting designs.

This device includes a Master Reset signal that disables the outputs into Tristate (Hi-Z) mode, and reset all internal digital circuitry (excluding the PLL).

An Output Enable, OE, input pin is available for shutting Qa(0:4), Qb(0:4), and Qc(0:3) outputs in a low state. All outputs are held low with input clock turned off.
