XR17L152

Features: ·High Performance DUART·PCI Bus 2.2 Target Interface Compliance·3.3 V PCI Bus Compliant up to 33 MHz Clock·5 Volt Tolerant Serial Inputs·32-bit PCI Bus Interface with EEPROM Interface·A Global Interrupt Source Register for both UARTs·Data Transfer in Byte, Word and Double-word·Data Read/...

product image

XR17L152 Picture
See larger image
SeekIC No. : 004549231 Detail

XR17L152: Features: ·High Performance DUART·PCI Bus 2.2 Target Interface Compliance·3.3 V PCI Bus Compliant up to 33 MHz Clock·5 Volt Tolerant Serial Inputs·32-bit PCI Bus Interface with EEPROM Interface·A Gl...

XR17L152 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XR17L152
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·High Performance DUART
·PCI Bus 2.2 Target Interface Compliance
·3.3 V PCI Bus Compliant up to 33 MHz Clock
·5 Volt Tolerant Serial Inputs
·32-bit PCI Bus Interface with EEPROM Interface
·A Global Interrupt Source Register for both UARTs
·Data Transfer in Byte, Word and Double-word
·Data Read/Write Burst Operation
·Each UART is independently controlled with:
·16C550 Compatible 5G Register Set
·64-byte Transmit and Receive FIFOs
·Transmit and Receive FIFO Level Counters
·Programmable TX and RX FIFO Trigger Level
·Automatic RTS/CTS or DTR/DSR Flow Control
·Automatic Xon/Xoff Software Flow Control
·Automatic RS485 Half-duplex Control Output with Selectable Turn-around Delay (0 to 15 bit-times)
·Infrared (IrDA 1.0) Data Encoder/Decoder
·Programmable Data Rate with Prescaler
·Up to 3.125 Mbps Data Rate at 8X Sampling
·Eight Multi-Purpose Inputs/outputs
· A General Purpose 16-bit Timer/Counter
·Sleep Mode with Automatic Wake-up Indicator
·Same package and pin-out as XR17C152 and XR17D152 (14x14x1.0 mm TQFP)


Application

· Network Management
· Factory Automation and Process Control
· Ethernet Network to Serial Ports
· Point-of-Sale Systems
· Multi serial ports RS-232/RS-422/RS-485 Cards


Pinout

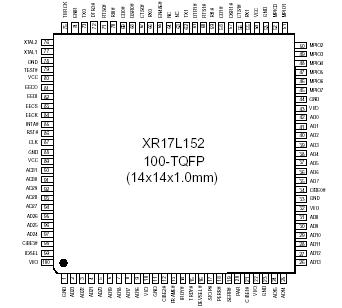

Connection Diagram


Specifications

Power Supply Range                                                                                4 Volts
Voltage at Any Pin                                                                               -0.5 to 4V
Operating Temperature                                                                 -40o to +85
Storage Temperature                                                                   -65o to +150
Package Dissipation                                                                                500 mW
Thermal Resistance (20x20x1.0mm 144-TQFP)   theta-ja = 45, theta-jc = 7 /W


Description

The XR17L1521 (L152) is a monolithic dual PCI Bus Universal Asynchronous Receiver and Transmitter (UART) in Exar's PCI Bus UART family. The XR17L152 is designed to meet today's 32-bit PCI Bus and high bandwidth requirements in communication systems. The global interrupt source register provides a complete interrupt status indication for both channels to speed up interrupt parsing. Each UART is independently controlled and has its own 16C550 compatible 5G (Fifth Generation) register set, transmit and receive FIFOs of 64 bytes, fully programmable transmit and receive FIFO trigger levels, transmit and receive FIFO level counters, automatic hardware flow control with programmable hysteresis, automatic software (Xon/Xoff) flow control, automatic half-duplex control output, wireless IrDA (Infrared Data Association) infrared encoder/decoder, 8 multi-purpose definable inputs/outputs, and a 16-bit general purpose timer/counter.
NOTE: 1 Covered by U.S. Patents #5,649,122, #5,949,787
