XR17C158

Features: • High Performance Octal UART• 32-bit PCI Bus Interface with EEPROM Interface• Interrupt Source Register for all 8 UARTs• Data Transfer in Byte, Word and Double-word• Read/Write Burst Operation• Each UART Includes• 16C550 Compatible RegistersR...

product image

XR17C158 Picture
See larger image
SeekIC No. : 004549227 Detail

XR17C158: Features: • High Performance Octal UART• 32-bit PCI Bus Interface with EEPROM Interface• Interrupt Source Register for all 8 UARTs• Data Transfer in Byte, Word and Double-wor...

XR17C158 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XR17C158
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Performance Octal UART
• 32-bit PCI Bus Interface with EEPROM Interface
• Interrupt Source Register for all 8 UARTs
• Data Transfer in Byte, Word and Double-word
• Read/Write Burst Operation
• Each UART Includes
• 16C550 Compatible Registers
• 64-byte Transmit and Receive FIFOs
• Transmit and Receive FIFO Level Counters
• Automatic RTS/CTS or DTR/DSR Flow Control
• Automatic Xon/Xoff Software Flow Control
• RS485 Half-duplex Control with Selectable Delay
• Infrared (IrDA 1.0) Data Encoder/Decoder
• Programmable Data Rate with Prescaler
• Up to 6.25 Mbps Serial Data Rate
• Eight Multi-Purpose Inputs/outputs
• A General Purpose 16-bit Timer/Counter
• Sleep Mode with Automatic Wake-up
• 5V Operation (PCI Compliance)
• Same package and pinout as the XR17C154, XR17D154 and XR17D158
• 144-pin LQFP Package (20x20x1.4mm)




Application

• Remote Access Servers
• Ethernet Network to Serial Ports
• Network Management
• Factory Automation and Process Control
• Point-of-Sale Systems
• Multi-port RS-232/RS-422/RS-485 Cards




Pinout

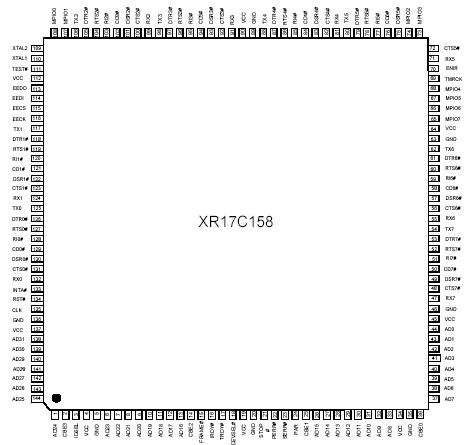

Connection Diagram




Specifications

Rating
Notes
Power Supply Range
7 Volts
Voltage at Any Pin
-0.5 to 7V
Operating Temperature
-40o to +85
Storage Temperature
-65o to +150
Package Dissipation
500 mW
Thermal Resistance (20x20x1.4mm 144-LQFP)
theta-ja = 42, theta-jc = 8


Specifications
CH 8
CPUInterface PCI Bus (2.2)
Data Rate@5/3.3/2.5V 6.2/na/na @8X
Tx/RxFIFO(Bytes) 64/64
Tx/RxFIFOCtrs Yes
Tx/RxFIFOINT Trig Program/ Program
AutoRTS/CTS Yes
IrDaSup Yes
AutoRS-485 Yes
5VTolInputs Yes
Sup V 5
Pkgs LQFP-144


Specifications
CH 8
CPUInterface PCI Bus (2.2)
Data Rate@5/3.3/2.5V 6.2/na/na @8X
Tx/RxFIFO(Bytes) 64/64
Tx/RxFIFOCtrs Yes
Tx/RxFIFOINT Trig Program/ Program
AutoRTS/CTS Yes
IrDaSup Yes
AutoRS-485 Yes
5VTolInputs Yes
Sup V 5
Pkgs LQFP-144





Description

The XR17C1581 (158) is an octal Universal Asynchronous Receiver and Transmitter (UART). The device is designed to meet the 32-bit PCI Bus and high bandwidth requirement in communication systems. The global interrupt source register provides a complete interrupt status indication for all 8 channels to speed up interrupt parsing. Each UART has its own 16C550 compatible set of configuration registers, transmit and receive FIFOs of 64 bytes, fully programmable transmit and receive FIFO level triggers, transmit and receive FIFO level counters, automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis, automatic software (Xon/Xoff) flow control, IrDA (Infrared Data Association) encoder/decoder, 8 multi-purpose definable inputs/outputs, and a 16-bit general purpose timer/counter.

NOTE: 1 Covered by U.S. Patents #5,649,122 and #5,949,787



Description

The XR17C1581 is an eight-channel PCI Bus Universal Asynchronous Receiver and Transmitter (UART) with same package and pin-out as Exar's XR17C154 quad UART. The device is designed to meet today's 32-bit PCI Bus and high bandwidth requirements in communication systems. The global interrupt source register provides a complete interrupt status indication for all eight channels to speed up interrupt parsing.

Each UART is independently controlled and has its own 16C550-compatible 5G register set, transmit and receive FIFOs of 64 bytes, fully programmable transmit and receive FIFO trigger levels, transmit and receive FIFO level counters, automatic hardware flow control with programmable hysteresis, automatic software (Xon/Xoff) flow control, IrDA (Infrared Data Association) encoder/decoder, 8 multi-purpose definable inputs/outputs, and a 16-bit general purpose timer/counter.

NOTE: 1Covered by U.S. Patents #5,649,122, #5,832,205

For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.
