Features: · Fully Integrated Transmit Interface for DS3/STS-1 or E3· Integrated Pulse Shaping Circuit· Compliance with Compatibility Bulletin 119· Compliance with CCITT Recommendations G.703 & G.824· Compliance with Bellcore TR-NWT-000499· Compliance with ANSI T1.404· Built-in B3ZS/HDB3 Encode...
XR-T7296: Features: · Fully Integrated Transmit Interface for DS3/STS-1 or E3· Integrated Pulse Shaping Circuit· Compliance with Compatibility Bulletin 119· Compliance with CCITT Recommendations G.703 & G...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The XR-T7296 is a fully integrated PCM Line Driver IC intended for DS3 (44.736Mbps) or E3 (34.368Mbps) applications. It can also be used for transmitting SONET STS-1 (51.84Mbps) signals over coaxial cable. The IC is designed to complement either XR-T7295 DS3/SONET STS-1 or XR-T7295E E3 Integrated Line Receivers. The XR-T7296 converts input clock and dual-rail unipolar data into AMI pulses according to AT&T Technical Advisory No. 34 or CCITT G.703 recommendations.
The device provides B3ZS (DS3) or HDB3 (E3) encoding functions for data to be transmitted to the line. A complimentary decoder circuit is also included in the chip for decoding received signals from an external line receiver. Both encoder and decoder functions can be disabled independently through external control pins. In the receive direction, coding errors and bipolar violations are detected and flagged at an output pin.
On-chip pulse shaper circuitry eliminates normally required external components for line equalization to meet the cross-connect template. For system level trouble-shooting and testing, both local and remote loop-backs are possible with the built-in loop-back circuit.

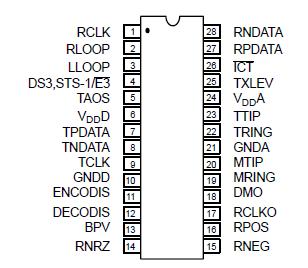

The XR-T7296 is manufactured using BiCMOS technology and is packaged in a 28-pin PDIP or SOJ packages. The device requires a single 5V power supply and consumes a maximum power of 700mW. (Line current feed + device dissipation).
