Product Details

Description

Features:

• Industry First Military Grade Platform FPGA Solution
• Certified to MIL-PRF-38535 (Qualified Manufacturer Listing)
• 100% Factory Tested
• Guaranteed over the full military temperature range
(55° C to +125° C)
• Ceramic and Plastic Wire-Bond and Flip-Chip Grid Array Packages
• IP-Immersion Architecture
- Densities from 1M to 6M system gates
- 300+ MHz internal clock speed (Advance Data)
- 622+ Mb/s I/O (Advance Data)
• SelectRAM™ Memory Hierarchy
- 2.5 Mb of dual-port RAM in 18 Kbit block
SelectRAM resources
- Up to 1 Mb of distributed SelectRAM resources
• High-Performance Interfaces to External Memory
- DRAM interfaces
` SDR/DDR SDRAM
` Network FCRAM
` Reduced Latency DRAM
- SRAM interfaces
` SDR/DDR SRAM
` QDR SRAM
- CAM interfaces
• Arithmetic Functions
- Dedicated 18-bit x 18-bit multiplier blocks
- Fast look-ahead carry logic chains
• Flexible Logic Resources
- Up to 67,584 internal registers/latches with Clock Enable
- Up to 67,584 look-up tables (LUTs) or cascadable
16-bit shift registers
- Wide multiplexers and wide-input function support
- Horizontal cascade chain and sum-of-products support
- Internal 3-state busing
• High-Performance Clock Management Circuitry
- Up to 12 DCM (Digital Clock Manager) modules
` Precise clock de-skew
` Flexible frequency synthesis
` High-resolution phase shifting
- 16 global clock multiplexer buffers
• Active Interconnect Technology
- Fourth generation segmented routing structure
- Predictable, fast routing delay, independent of fanout
• SelectIO™-Ultra Technology
- Up to 824 user I/Os
- 19 single-ended and six differential standards
- Programmable sink current (2 mA to 24 mA) per I/O
- Digitally Controlled Impedance (DCI) I/O: on-chip
termination resistors for single-ended I/O standards
- PCI compliant (32/33 MHz) at 3.3V
- Differential Signaling
` 622 Mb/s Low-Voltage Differential Signaling I/O
(LVDS) with current mode drivers
` Bus LVDS I/O
` Lightning Data Transport (LDT) I/O with current driver buffers
` Low-Voltage Positive Emitter-Coupled Logic (LVPECL) I/O
` Built-in DDR input and output registers
- Proprietary high-performance SelectLink Technology
` High-bandwidth data path
` Double Data Rate (DDR) link
` Web-based HDL generation methodology
• Supported by Xilinx Foundation Series™ and Alliance
Series™ Development Systems
- Integrated VHDL and Verilog design flows
- Compilation of 10M system gates designs
- Internet Team Design (ITD) tool
• SRAM-Based In-System Configuration
- Fast SelectMAP configuration
- Triple Data Encryption Standard (DES) security
option (Bitstream Encryption)
- IEEE 1532 support
- Partial reconfiguration
- Unlimited reprogrammability
- Readback capability
• 0.15 m 8-Layer Metal Process with 0.12 m
High-Speed Transistors
• 1.5V (VCCINT) Core Power Supply, Dedicated 3.3V
VCCAUX Auxiliary and VCCO I/O Power Supplies
• IEEE 1149.1 Compatible Boundary-Scan Logic Support

Pinout

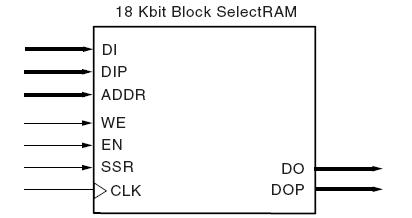

Connection Diagram

Specifications

Symbol	Description(1		Units
V_CCINT	Internal supply voltage relative to GND	0.5 to 1.65	V
V_CCAUX	Auxiliary supply voltage relative to GND	0.5 to 4.0	V
V_CCO	Output drivers supply voltage relative to GND	0.5 to 4.0	V
V_BATT	Key memory battery backup supply	0.5 to 4.0	V
VR_EF	Input reference voltage	0.5 to VCCO + 0.5	VV
V_IN⁽³⁾	Input voltage relative to GND (user and dedicated I/Os)	0.5 to VCCO + 0.5	V
V_TS	Voltage applied to 3-state output (user and dedicated I/Os)	0.5 to 4.0	V
T_STG	Storage temperature (ambient)	65 to +150	°C
T_SOL	Maximum soldering temperature	+220	°C
T_J	Operating junction temperature (2)	+125	°C

Description

The XQ2V3000 includes platform FPGAs developed for high performance from low-density to high-density designs that are based on IP cores and customized modules. The family delivers complete solutions for telecommunication, wireless, networking, video, and DSP applications, including PCI, LVDS, and DDR interfaces.

The XQ2V3000 leading-edge 0.15 m/0.12 m CMOS 8-layer metal process and the Virtex-II architecture are optimized for high speed with low power consumption. Combining a wide variety
of flexible features and a large range of densities up to 8 million system gates, the Virtex-II family enhances programmable logic design capabilities and is a powerful alternative to mask-programmed gates arrays. As shown in Table 1, the QPro Virtex-II family comprises three members, ranging from 1M to 6M system gates.
