XM28C020

Features: • High Density 2 Megabit (256K x 8) Module• Access Time of 150ns at 55°C to +125°C• Base Memory Component: Xicor X28C513• Pinout conforms to JEDEC Standard for 2 Megabit E2PROM• Fast Write Cycle Times-128 Byte Page Write -Byte or Page Write Cycle: 5ms Typica...

product image

XM28C020 Picture
See larger image
SeekIC No. : 004548479 Detail

XM28C020: Features: • High Density 2 Megabit (256K x 8) Module• Access Time of 150ns at 55°C to +125°C• Base Memory Component: Xicor X28C513• Pinout conforms to JEDEC Standard for 2 Me...

XM28C020 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XM28C020
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Density 2 Megabit (256K x 8) Module
• Access Time of 150ns at 55°C to +125°C
• Base Memory Component: Xicor X28C513
• Pinout conforms to JEDEC Standard for 2 Megabit E2PROM
• Fast Write Cycle Times
  -128 Byte Page Write
  -Byte or Page Write Cycle: 5ms Typical
  -Complete Memory Rewrite: 10 Seconds
• Early End of Write Detection
  -DATA Polling
  -Toggle Bit Polling
• Software Data Protection
• Three Temperature Ranges
  -Commercial: 0°C to +75°C
  -Industrial: 40° to +85°C
  -Military: 55° to +125°C
• High Rel Module
  -100% MIL-STD-883 Compliant Components
• Endurance: 100,000 Cycles


Pinout

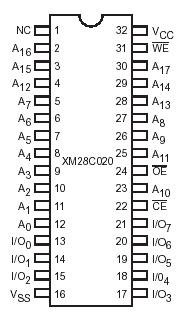

Connection Diagram


Specifications

Temperature under Bias .................. 65 to +135
Storage Temperature ....................... 65 to +150
Voltage on any Pin with
Respect to VSS ..........................................1V to +7V
D.C. Output Current ..............................................5mA
Lead Temperature
(Soldering, 10 seconds) ...................................... 300


Description

The XM28C020 is a high density 2 Megabit E2PROM comprised of four X28C513 LCCs mounted on a co-fired multilayered ceramic substrate. Individual components are 100% tested prior to assembly in module form and then 100% tested after assembly. The XM28C020 is configured 256K x 8 bit. The module supports a 128-byte page write operation. This combined with DATA Polling or Toggle Bit Polling, effectively provides a 39ms/byte write cycle, enabling the entire array to be rewritten in 10 seconds. The XM28C020 provides the same high endurance and data retention as the X28C513.
