Features: * Meets telecom requirements for North America, and Japan: Includes User Transferrable FCC Part 68 Registration
* Small Size: 2.75 inches by 1.38 inches by 0.42 inches;
* Modem Protocols for data transmission from 56 KBPS down to 300 BPS: XEV.90 (56 Kbps), V.34bis, V.34, V.32bis, V.32, V.22bis, V.22, V.21, Bell 212A and 103;
* Modem Control and Configuration via standard AT Commands
* Fax Protocols: V.17, V.29, V.27ter, and V.21 channel 2
* Error Correction; V.42, MNP2-4 and MNP10
* Data Compression; V.42bis and MNP5 provides a maximum effective data rate of 133,400 bps.
* Non-Volatile Memory including for storing telephone numbers and modem configuration.
* Standard operating temperature range 0C to 70C. Extended operating temperature range of -40C to +85C is availalble.

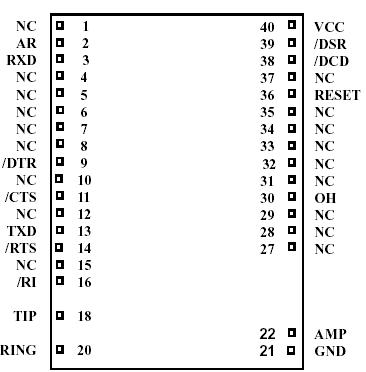

Pinout
SpecificationsSUPPLY VOLTAGE - Vcc ............................................................+6.5 Volts
DC INPUT VOLTAGE -0.6 Volts to +6.5 Volts
STORAGE TEMPERATURE RANGE ......................................-25 TO +85
LEAD TEMPERATURE (Soldering, 2 sec per wave) ..........................260
OPERATING TEMPERATURE RANGE ...........................................0 TO 70
Exceeding these values may result in permanent damage to the device.DescriptionXecom's XE5614L is a complete, 56 Kbps modem in a single component. The XE5614L can be used in throughout North America and Japan. It includes user transferrable FCC Part 68 Registration.
The XE5614L is a complete modem including the DAA. XE5614L users do not need to add RAM, ROM, Crystals, low distortion transformer, or switches to complete the modem design. The user only needs to provide the TTL level, serial interface and the telephone line connection.
The XE5614L is a full-featured modem. Besides 56 Kbps data transfer, the XE5614L supports data compression, error correction and fax transfer. The XE5614L also includes NVRAM for permanent storage of the modem configuration.
The XE5614L is pin compatible with Xecom's XE1414L, and XE3314L modems. This family of modems permits a simple upgrade path from 14,400 bps to 56,000 bps.
XE5614L Data Sheet
