XE3314L

Features: · User Transferrable FCC Part 68 Registration· Small Size: 2.75 inches by 1.38 inches by 0.42 inches;· Modem Protocols for data transfer from 33.6 KBPS down to 300 BPS: V.34bis, V.34, V.32bis, V.32, V.22bis, V.22, V.21, Bell 212A and 103;· Modem Control and Configuration via standard AT...

product image

XE3314L Picture
See larger image
SeekIC No. : 004548254 Detail

XE3314L: Features: · User Transferrable FCC Part 68 Registration· Small Size: 2.75 inches by 1.38 inches by 0.42 inches;· Modem Protocols for data transfer from 33.6 KBPS down to 300 BPS: V.34bis, V.34, V.32...

XE3314L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XE3314L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· User Transferrable FCC Part 68 Registration
· Small Size: 2.75 inches by 1.38 inches by 0.42 inches;
· Modem Protocols for data transfer from 33.6 KBPS down to 300 BPS: V.34bis, V.34, V.32bis, V.32, V.22bis,
    V.22, V.21, Bell 212A and 103;
· Modem Control and Configuration via standard AT Commands
· Fax Protocols: V.17, V.29, V.27ter, and V.21 channel 2
· Error Correction; V.42, MNP2-4 and MNP10
· Data Compression; V.42bis and MNP5 provides a maximum effective data rate of 133,400 bps.
· Non-Volatile Memory for storing telephone numbers and modem configuration.
· Standard operating temperature range 0C to 70C. Extended operating temperature range of -40C to +
    85C is availalble.


Pinout

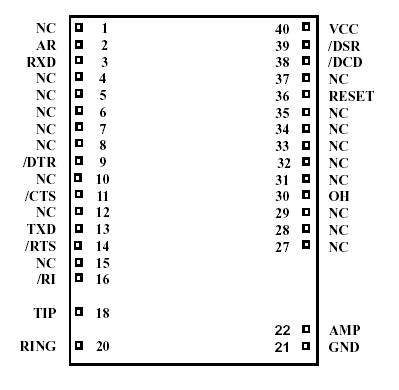

Connection Diagram


Specifications

SUPPLY VOLTAGE - Vcc .......................................+6.5 Volts
DC INPUT VOLTAGE -0.6 Volts to........................ +6.5 Volts
STORAGE TEMPERATURE RANGE ..................-25 TO +85
LEAD TEMPERATURE (Soldering, 2 sec per wave)...... 260
OPERATING TEMPERATURE RANGE...................... 0 TO 70
*Exceeding these values may result in permanent damage to the device.


Description

Xecom's XE3314L is a complete, 33.6 Kbps modem in a single component. The XE3314L can be used in throughout North America and Japan. It includes user transferrable FCC Part 68 Registration.

The XE3314L is a complete modem including the DAA. XE3314L users do not need to add RAM, ROM, Crystals, low distortion transformer, or switches to complete the modem design. The user only needs to provide the TTL level, serial interface and the telephone line connection.

The XE3314L is a full-featured modem. The XE3314L supports data compression, error correction and fax transfer.
The XE3314L also includes NVRAM for permanent storage of the modem configuration.

The XE3314L is pin compatible with Xecom's XE1414L, and XE5614L modems. This family of modems permits a simple upgrade path from 14,400 bps to 56,000 bps.
