XE1000

Features: • Meet World-Wide PTT requirements (external components may be required)• 4000 Volts RMS isolation• BABT Certified• Small Size (1.05 x 1.25 x 0.40 )• Low Power (typical on-line; 10 milliWatts)• PSTN and PBX Compatible• Ring Detection• Hoo...

product image

XE1000 Picture
See larger image
SeekIC No. : 004548224 Detail

XE1000: Features: • Meet World-Wide PTT requirements (external components may be required)• 4000 Volts RMS isolation• BABT Certified• Small Size (1.05 x 1.25 x 0.40 )• Low Po...

XE1000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XE1000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Meet World-Wide PTT requirements (external components may be required)
• 4000 Volts RMS isolation
• BABT Certified
• Small Size (1.05" x 1.25" x 0.40")
• Low Power (typical on-line; 10 milliWatts)
• PSTN and PBX Compatible
• Ring Detection
• Hookswitch Control
• Bell Tinkle Suppression Control (XE1000)
• FCC Part 68 Compliant

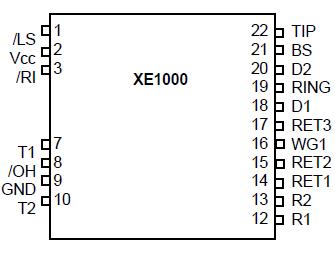

Pinout

Connection Diagram


Specifications

SUPPLY VOLTAGE - Vcc +7.0 Volts
DC INPUT VOLTAGE -0.6 Volts to +6.5 Volts
STORAGE TEMPERATURE RANGE -25 TO +100
LEAD TEMPERATURE(Soldering, 10sec) 300
OPERATING TEMPERATURE RANGE 0 TO 70
*Exceeding these values may result in permanent damage to the device.



Description

Xecom's XE1000 provides a single hardware platform for telecom products world-wide. You no longer need a unique design to comply with the PTT requirements of each country. The XE1000 provides 4000 volts isolation and, in conjunction with some external straps or components, meets the requirements of PTT's throughout the world.

Small size and low power drain make the XE1000 ideal for compact, power-limited applications. The XE1000 covers just 1.3 square inches of board space and consume just 2 milliamps from the single +5 volt supply. The XE1000 includes ring detect circuitry , off hook control and bell tinkle suppression for use in the UK.
