XE0068

Features: ·Small Size - 1.75 x 1.08 x 0.42 ;·User Transferrable FCC Part 68 Registration;·Ring Detection and Hookswitch Control;·1500 Volt Isolation;·800 Volt Surge Protection;·Integrated supplemental lightening protection·Integral 2-Second Billing Delay;·Automatic Gain Control of transmit signa...

product image

XE0068 Picture
See larger image
SeekIC No. : 004548220 Detail

XE0068: Features: ·Small Size - 1.75 x 1.08 x 0.42 ;·User Transferrable FCC Part 68 Registration;·Ring Detection and Hookswitch Control;·1500 Volt Isolation;·800 Volt Surge Protection;·Integrated suppleme...

XE0068 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XE0068
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Small Size - 1.75" x 1.08" x 0.42";
·User Transferrable FCC Part 68 Registration;
·Ring Detection and Hookswitch Control;
·1500 Volt Isolation;
·800 Volt Surge Protection;
·Integrated supplemental lightening protection
·Integral 2-Second Billing Delay;
·Automatic Gain Control of transmit signal;
·Integral 2 to 4 wire convertor;
·Suitable for broad bandwidth applications;


Pinout

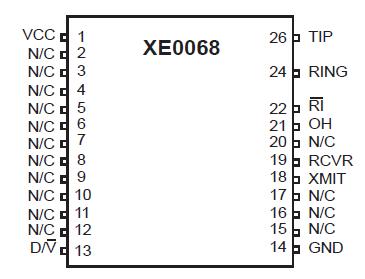

Connection Diagram


Specifications

Supply Voltage +6.5 Volts
Storage Temperature Range -25 to 85
Operating Temperature Range 0 to 70
Lead Temperature 260
Maximum Soldering Duration 2 seconds

* Exceeding these levels may result in permanent damage to the device.




Description

The XE0068 is a compact, FCC registered telephone line interface. Designers can use the XE0068 in their telecom designs without going through the time and expense of FCC Part 68 Registration. This makes the XE0068 perfect for low volume and prototype designs.

To attain FCC part 68 Registration on the XE0068, Xecom was required to control the output level to the telephone line and provide a 2-second billing delay.

Xecom designed an Automatic Gain Control circuit to meet FCC rules limiting transmit level. Xecom's Automatic Gain Control circuit optimizes a wide range of input signal levels for placement on the telephone line.

The XE0068 can support data, fax, voice, and DTMF signalling applications.
