XC6202

Features:

Maximum Output Current : 150mA
Dropout Voltage : 200mV @ 30mA
Operating Voltage Range : up to 20V
Output Voltage Range : 1.8V to 18V (selectable in 0.1V steps)
Highly Accurate : ± 2%
Low Power Consumption : TYP 10 µA (VOUT=3.3V)
Operating Ambient Temp. : -40OC ~ 85OC
Line Regulation : TYP 0.01% / V
Ultra Small Packages : SOT-23 (150mW), SOT-89 (500mW)
Low ESR Capacitor Compatible : ceramic capacitor


Application

Battery Powered Equipment
Reference Voltage Sources
Cameras, Video Cameras
Palmtops

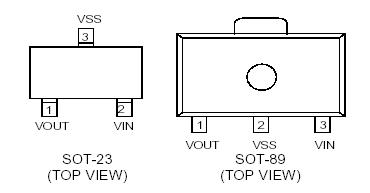

Pinout




Specifications

PARAMETER		SYMBOL	RATINGS	UNITS
Input Voltage		VIN	22	V
Output Current		IOUT	500	mA
Output Voltage		VOUT	VSS ~ 0.3 to VIN + 0.3	V
Continuous Total	SOT-23	Pd	150	mW
Power Dissipation	SOT-89	Pd	500
Operating Ambient Temperature		Topr	-40 to +85	OC
Storage Temperature		Topr	-40 to +125	OC

Description

The XC6202 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The XC6202 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit.Output voltage is selectable in 0.1V steps from 1.8V ~ 18V. The series is also compatible with low ESR ceramic capacitors which give added output stability.Since the current limiter circuit is built-in, the IC is protected against overshoot currents at such times of output shorts etc. SOT-23(150mW) and SOT-89(500mW) packages are available.
