XC6201

Maximum Output Current            : 250mA (TYP.)
Dropout Voltage                          : 0.16V @ 100mA
Maximum Operating Voltage        : 10V
Output Voltage Range                 : 1.3V ~ 6.0V
(selectable in 0.1V steps)
Highly Accurate                            : ± 2%
Low Power Consumption             : TYP 2.0 A
Operational Temperature Range  : -40 ~ 85

Ultra Small Packages                    : SOT-25 (250mW),
                                                       SOT-89 (500mW),
                                                       TO-92 (300mW)

The XC6201 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies.
The series provides large currents with a significantly small dropout voltage.
The XC6201 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between 1.3V ~ 6.0V.

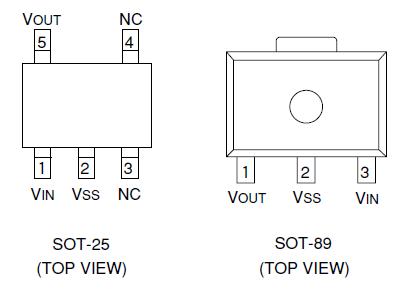

SOT-25 (250mW), SOT-89 (500mW) and TO-92 (300mW) packages are available.
