Product Details

Description



Features:

• Configuration one-time programmable (OTP) read-only memory designed to store configuration bitstreams for
Spartan-II/Spartan-IIE FPGA devices
• Simple interface to the Spartan device
• Programmable reset polarity (active High or active Low)
• Low-power CMOS floating gate process
• 3.3V PROM
• Available in compact plastic 8-pin DIP, 8-pin VOIC,20-pin SOIC, or 44-pin VQFP packages.
• Programming support by leading programmer manufacturers.
• Design support using the Xilinx Alliance and Foundation series software packages.
• Guaranteed 20-year life data retention


Pinout

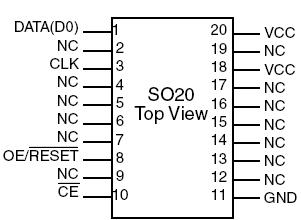

Connection Diagram


Specifications

Symbol
Description
Value
Units
VCC
 Supply voltage relative to GND
0.5 to +4.0
V
VIN
 Input voltage with respect to GND
0.5 to VCC +0.5
V
VTS
 Voltage applied to High-Z output
0.5 to VCC +0.5
V
TSTG
 Storage temperature (ambient)
65 to +150
TSOL
 Maximum soldering temperature (10s @ 1/16 in.)
+260
1. Stresses beyond those listed under Absolute Maximum Ratings might cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those listed under Operating Conditions is not implied. Exposure to Absolute Maximum Ratings conditions for extended periods of time might affect device reliability.
