Features:

• 4.5V to 5.5V operation. For low voltage operation, consult factory.
• 64K bytes of on-chip Flash program memory with In-System Programming capability
• Five Flash blocks = two 8k byte blocks and three 16k byte blocks
• Nearly identical to XA-G3, except for double the program and RAM memories
• Single supply voltage In-System Programming (ISP) of the Flash memory (VPP = VDD, or VPP = 12V if desired)
• Boot ROM contains low level Flash programming routines for In-Application Programming and a default serial loader using the UART
• 2048 bytes of on-chip data RAM
• Supports off-chip program and data addressing up to 1 megabyte (20 address lines)
• Three standard counter/timers with enhanced features (same as XA-G3 T0, T1, and T2). All timers have a toggle output capability
• Watchdog timer
• Two enhanced UARTs with independent baud rates
• Seven software interrupts
• Four 8-bit I/O ports, with 4 programmable output configurations for each pin
• 30 MHz operating frequency at 5V
• Power saving operating modes: Idle and Power-Down.Wake-Up from power-down via an external interrupt is supported.
• 44-pin PLCC and 44-pin LQFP packages


Pinout

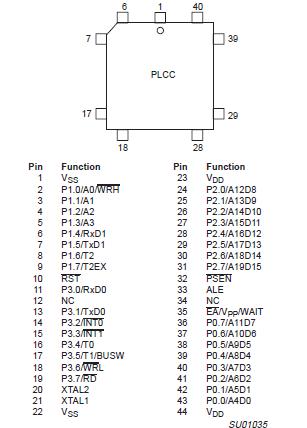

Connection Diagram


Specifications

PARAMETER
RATING
UNIT
Operating temperature under bias
55 to +125
Storage temperature range
65 to +150
Voltage on EA/VPP pin to VSS
0 to +13.0
V
Voltage on any other pin to VSS
0.5 to VDD+0.5V
V
Maximum IOL per I/O pin
15
mA
Power dissipation (based on package heat transfer limitations, not device power consumption)
1.5
W



Description

The XA-G49 is a member of Philips' 80C51 XA (eXtended Architecture) family of high performance 16-bit single-chip
microcontrollers.

The XA-G49 contains 64k bytes of Flash program memory, and provides three general purpose timers/counters, a watchdog timer,dual UARTs, and four general purpose I/O ports with programmable output configurations.A default serial loader program in the Boot ROM allows In-System Programming (ISP) of the Flash memory without the need for a loader in the Flash code. User programs may erase and reprogram the Flash memory at will through the use of standard routines contained in the Boot ROM (In-Application Programming).
