Features:

•Dual solid-state potentiometers
•Individual Up/Down interfaces
•32 wiper tap points per potentiometer
-Wiper position stored in nonvolatile memory
and recalled on power-up
•31 resistive elements per potentiometer
-Temperature compensated
-Maximum resistance tolerance of ± 25%
-Terminal voltage, 0 to VCC
•Low power CMOS
-VCC = 2.7 V - 5.5 V.
-Active current, 200µA typical per potentiometer
-Standby current, 4µA max per potentiometer
•High reliability
-Endurance 200,000 data changes per bit
-Register data retention, 100 years
•RTOTALvalue = 12.5kΩ, 50kΩ
•Packages
-14-lead TSSOP




Pinout

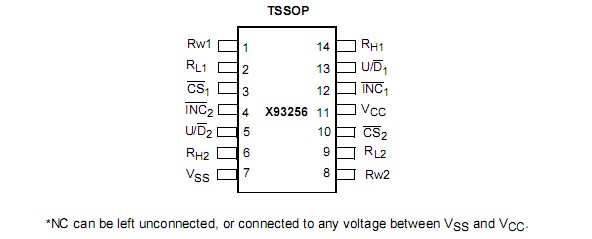

Connection Diagram




Specifications

Temperature under bias....................-65°C to +135°C
Storage temperature........................-65°C to +150°C
Voltage on CS , INC , U/D , RH, RLand VCC
with respect to VSS..............................-1V to +6.5V
Lead temperature (soldering 10 seconds).........300°C
Maximum reflow temperature (40 seconds)..... .240°C
Maximum resistor current..................................... 2mA




Description

The Intersil X93256 is a dual digitally controlled potentiometer (XDCP). The device consists of two resistor arrays, wiper switches, a control section, and nonvolatile memory. The wiper positions are controlled by individual Up/Down interfaces.

A X93256 potentiometer is implemented by a resistor array composed of 31 resistive elements and a wiper switching network. The position of each wiper element is controlled by a set of independent CS, U/D, and INCinputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power-up operation.

Each X93256 potentiometer is connected as a three-terminal variable resistor and can be used in a wide variety of applications including:

bias and gain control
LCD Contrast Adjustment
