X93255

Features: • Dual solid-state potentiometers• Independent Up/Down interfaces• 32 wiper tap points per potentiometer-Wiper position stored in nonvolatile memory and recalled on power-up• 31 resistive elements per potentiometer-Temperature compensated-Maximum resistance tolera...

product image

X93255 Picture
SeekIC No. : 004547513 Detail

X93255: Features: • Dual solid-state potentiometers• Independent Up/Down interfaces• 32 wiper tap points per potentiometer-Wiper position stored in nonvolatile memory and recalled on power...

floor Price/Ceiling Price

Part Number:
X93255
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Dual solid-state potentiometers
• Independent Up/Down interfaces
• 32 wiper tap points per potentiometer
-Wiper position stored in nonvolatile memory and recalled on power-up
• 31 resistive elements per potentiometer
-Temperature compensated
-Maximum resistance tolerance ± 25%
-Terminal voltage, 0 to VCC
• Low power CMOS
-VCC = 5V ± 10%
-Active current, 200µA typ.
-Standby current, 4µA max
• High reliability
-Endurance 200,000 data changes per bit
-Register data retention, 100 years
• RTOTAL value = 50kΩ
• Packages
-14-lead TSSOP





Pinout

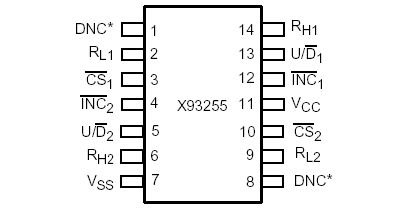

  Connection Diagram




Specifications

Temperature under bias ........................ -65 to +135
Storage temperature ............................. -65 to +150
Voltage on CS, INC, U/D, RH, RL and VCC
with respect to VSS ..................................... -1V to +6.5V
Lead temperature (soldering 10 seconds).............. 300
Maximum reflow temperature (40 seconds) ........... 240
Maximum resistor current...........................................2mA

Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only; the functional operation of the device (at these or any other conditions above those listed in the operational sections of this specification) is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.






Description

The Intersil X93255 is a dual digitally controlled potentiometer (XDCP). The device consists of two resistor arrays, wiper switches, a control section, and nonvolatile memory. The wiper positions are controlled by individual Up/Down interfaces.

A X93255 potentiometer is implemented by a resistor array composed of 31 resistive elements and a wiper switching network. The position of each wiper element is controlled by a set of independent CS, U/D, and INC inputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power-up operation.

Each X93255 potentiometer is connected as a two-terminal variable resistor and can be used in a wide variety of applications including:

bias and gain control
LCD Contrast Adjustment
