X28HT512

Features: • 175°C Full Functionality• Simple Byte and Page Write -Single 5V Supply -Self-Timed -No Erase Before Write -No Complex Programming Algorithms -No Overerase Problem• Highly Reliable Direct Write™ Cell -Endurance: 10,000 Write Cycles -Data Retention: 100 Years -Hig...

product image

X28HT512 Picture
See larger image
SeekIC No. : 004547220 Detail

X28HT512: Features: • 175°C Full Functionality• Simple Byte and Page Write -Single 5V Supply -Self-Timed -No Erase Before Write -No Complex Programming Algorithms -No Overerase Problem• High...

X28HT512 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X28HT512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 175°C Full Functionality
• Simple Byte and Page Write
  -Single 5V Supply
  -Self-Timed
  -No Erase Before Write
  -No Complex Programming Algorithms
  -No Overerase Problem
• Highly Reliable Direct Write™ Cell
  -Endurance: 10,000 Write Cycles
  -Data Retention: 100 Years
  -Higher Temperature Functionality is Possible
     by Operating in the Byte Mode

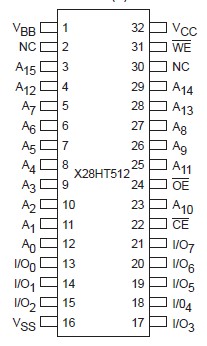

Pinout

Connection Diagram


Specifications

X28HT512 ........................................................ 40°C to +175°C
Voltage on any Pin with Respect to VSS ................... 1V to +7V
D.C. Output Current .............................................................5mA
Lead Temperature (Soldering, 10 seconds) ..................... 300°C


Description

The X28HT512 is an 64K x 8 CMOS E2PROM, fabricated with Xicor's proprietary, high performance, floating gate CMOS technology which provides Xicor products superior high temperature performance characteristics. Like all Xicor programmable nonvolatile memories the X28HT512 is a 5V only device. The X28HT512 features the JEDEC approved pinout for bytewide memories, compatible with industry standard EPROMS.

The X28HT512 supports a 128-byte page write operation, effectively providing a 39ms/byte write cycle and enabling the entire memory to be written in less than 2.5 seconds.
