X28HC256

Features: Access Time: 70nsSimple Byte and Page Write-Single 5V Supply-No External High Voltages or VPP ControlCircuits-Self-Timed-No Erase Before Write-No Complex Programming Algorithms-No Overerase ProblemLow Power CMOS:-Active: 60mA-Standby: 500ASoftware Data Protection-Protects Data Against Sy...

product image

X28HC256 Picture
See larger image
SeekIC No. : 004547176 Detail

X28HC256: Features: Access Time: 70nsSimple Byte and Page Write-Single 5V Supply-No External High Voltages or VPP ControlCircuits-Self-Timed-No Erase Before Write-No Complex Programming Algorithms-No Overeras...

X28HC256 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X28HC256
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Access Time: 70ns
Simple Byte and Page Write
-Single 5V Supply
-No External High Voltages or VPP Control
Circuits
-Self-Timed
-No Erase Before Write
-No Complex Programming Algorithms
-No Overerase Problem
Low Power CMOS:
-Active: 60mA
-Standby: 500A
Software Data Protection
-Protects Data Against System Level
Inadvertent Writes
High Speed Page Write Capability
Highly Reliable Direct Write(TM) Cell
-Endurance: 100,000 Write Cycles
-Data Retention: 100 Years
Early End of Write Detection
-DATA Polling
-Toggle Bit Polling

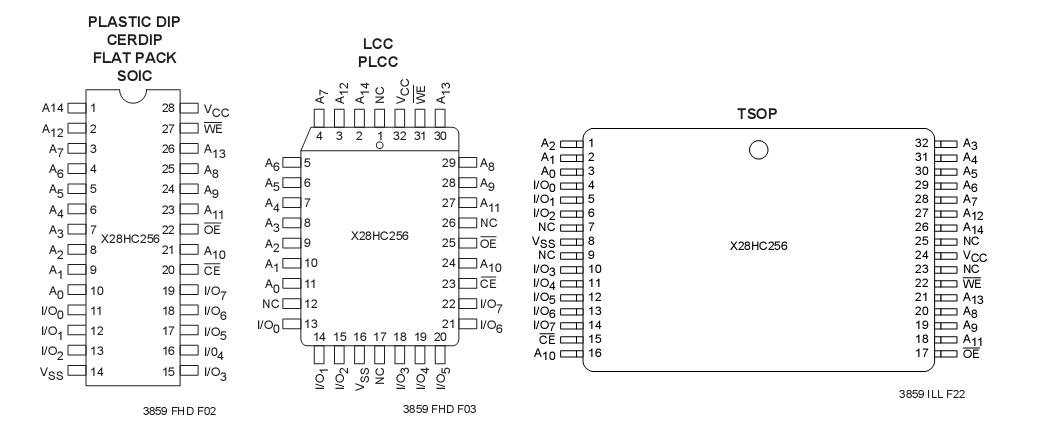

Pinout

Connection Diagram




Specifications

ABSOLUTE MAXIMUM RATINGS*
Temperature under Bias
X28HC256 ......................................... 10°C to +85°C
X28HC256I, X28HC256M ..................65°C to +135°C
Storage Temperature........................65°C to +150°C
Voltage on any Pin with
Respect to VSS ............................................ 1V to +7V
D.C. Output Current ...............................................10mA
Lead Temperature (Soldering, 10 seconds)......... 300°C




Description

The X28HC256 is a second generation high perfor- mance CMOS 32K x 8 E2 PROM. It is fabricated with Xicor's proprietary, textured poly floating gate tech- nology, providing a highly reliable 5 Volt only nonvolatile memory.

The X28HC256 supports a 128-byte page write opera- tion, effectively providing a 24s/byte write cycle and enabling the entire memory to be typically rewritten in less than 0.8 seconds. The X28HC256 also features DATA Polling and Toggle Bit Polling, two methods of providing early end of write detection. The X28HC256 also supports the JEDEC standard Software DATA Pro- tection feature for protecting against inadvertent writes during power-up and power-down.

Endurance for the X28HC256 is specified as a minimum 100,000 write cycles per byte and an inherent data retention of 100 years.
