X2816C

Features: • 90ns Access Time• Simple Byte and Page Write -Single 5V Supply -No External High Voltages or VPP Control Circuits -Self-Timed -No Erase Before Write -No Complex Programming Algorithms -No Overerase Problem• High Performance Advanced NMOS Technology• Fast Write C...

product image

X2816C Picture
See larger image
SeekIC No. : 004547165 Detail

X2816C: Features: • 90ns Access Time• Simple Byte and Page Write -Single 5V Supply -No External High Voltages or VPP Control Circuits -Self-Timed -No Erase Before Write -No Complex Programming A...

X2816C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X2816C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 90ns Access Time
• Simple Byte and Page Write
   -Single 5V Supply
   -No External High Voltages or VPP Control Circuits
   -Self-Timed
   -No Erase Before Write
   -No Complex Programming Algorithms
   -No Overerase Problem
• High Performance Advanced NMOS Technology
• Fast Write Cycle Times
   -16 Byte Page Write Operation
   -Byte or Page Write Cycle: 5ms Typical
   -Complete Memory Rewrite: 640ms Typical
   -Effective Byte Write Cycle Time: 300s Typical
• DATA Polling
   -Allows User to Minimize Write Cycle Time
• JEDEC Approved Byte-Wide Pinout
• High Reliability
   -Endurance: 10,000 Cycles
   -Data Retention: 100 Years


Pinout

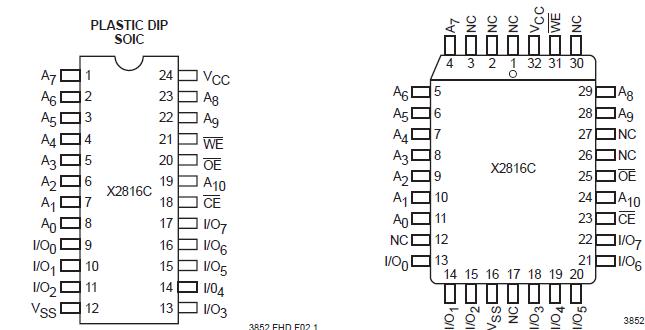

Connection Diagram


Specifications

Temperature under Bias
        X2816C....................................... 10°C to +85°C
       X2816CI .................................... 65°C to +135°C
Storage Temperature ....................... 65°C to +150°C
Voltage on any Pin with
           Respect to VSS .................................. 1V to +7V
D.C. Output Current ...................................................5mA
Lead Temperature (Soldering, 10 seconds)........... 300°C


Description

The Xicor X2816C is a 2K x 8 E2PROM, fabricated with an advanced, high performance N-channel floating gate MOS technology. Like all Xicor Programmable nonvolatile memories it is a 5V only device. The X2816C features the JEDEC approved pinout for byte-wide memories, compatible with industry standard RAMs,ROMs and EPROMs.

The X2816C supports a 16-byte page write operation,typically providing a 300ms/byte write cycle, enabling the entire memory to be written in less than 640ms. The X2816C also features DATA Polling, a system software support scheme used to indicate the early completion of a write cycle.

Xicor E2PROMs are designed and tested for applications requiring extended endurance. Inherent data retention is greater than 100 years.
