Features: • 2MHz Clock Rate
• SPI Modes (0,0 & 1,1)
• 1K X 8 Bits
-32 Byte Page Mode
• Low Power CMOS
-<1A Standby Current
-<5mA Active Current
• 2.7V To 5.5V Power Supply
• Block Lock Protection
-Protect 1/4, 1/2 or all of E2PROM Array
• Built-in Inadvertent Write Protection
-Power-Up/Power-Down protection circuitry
-Write Enable Latch
-Write Protect Pin
• Self-Timed Write Cycle
-5ms Write Cycle Time (Typical)
• High Reliability
-Endurance: 100,000 cycles
-Data Retention: 100 Years
-ESD protection: 2000V on all pins
• 8-Lead PDlP Package
• 8-Lead SOIC Package

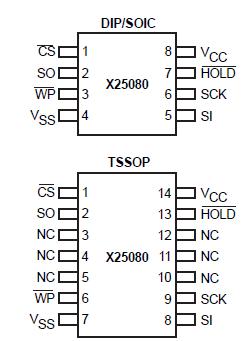

• 14-Lead TSSOP PackagePinout
SpecificationsTemperature under Bias .................. 65°C to +135°C
Storage Temperature ....................... 65°C to +150°C
Voltage on any Pin with Respect to VSS ......... 1V to +7V
D.C. Output Current ...................................................5mA
Lead Temperature
(Soldering, 10 seconds) .............................. 300°C
Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device.This is a stress rating only and the functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe X25080 is a CMOS 8192-bit serial E2PROM,internally organized as 1K x 8. The X25080 features a Serial Peripheral Interface (SPI) and software protocol allowing operation on a simple three-wire bus. The bus signals are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a chip select (CS) input, allowing any number of devices to share the same bus.
The X25080 also features two additional inputs that provide the end user with added flexibility. By asserting the HOLD input, the X25080 will ignore transitions on its inputs, thus allowing the host to service higher priority interrupts. The WP input can be used as a hardwire input to the X25080 disabling all write attempts to the status register, thus providing a mechanism for limiting end user capability of altering 0, 1/4, 1/2 or all of the memory.
The X25080 utilizes Xicor's proprietary Direct Write™ cell, providing a minimum endurance of 100,000 cycles and a minimum data retention of 100 years.
X25080 Data Sheet
