X24C01

Features: • 2.7V to 5.5V Power Supply• Low Power CMOS-Active Current Less Than 1 mA-Standby Current Less Than 50 mA• Internally Organized 128 x 8• 2 Wire Serial Interface-Bidirectional Data Transfer Protocol• Four Byte Page Write Mode• Self Timed Write Cycle-Typ...

product image

X24C01 Picture
See larger image
SeekIC No. : 004547086 Detail

X24C01: Features: • 2.7V to 5.5V Power Supply• Low Power CMOS-Active Current Less Than 1 mA-Standby Current Less Than 50 mA• Internally Organized 128 x 8• 2 Wire Serial Interface-Bid...

X24C01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X24C01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2.7V to 5.5V Power Supply
• Low Power CMOS
-Active Current Less Than 1 mA
-Standby Current Less Than 50 mA
• Internally Organized 128 x 8
• 2 Wire Serial Interface
-Bidirectional Data Transfer Protocol
• Four Byte Page Write Mode
• Self Timed Write Cycle
-Typical Write Cycle Time of 5 ms
• High Reliability
-Endurance: 100,000 Cycles
-Data Retention: 100 Years
• 8-Pin Mini-DIP, 8-PIN MSOP, and 8-PIN SOIC Packages

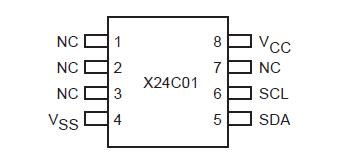

Pinout

Connection Diagram


Specifications

Temperature Under Bias .................. 65°C to +135°C
Storage Temperature ....................... 65°C to +150°C
Voltage on any Pin with
Respect to VSS .................................... 1.0V to +7.0V
D.C. Output Current ............................................ 5 mA
Lead Temperature
(Soldering, 10 Seconds) .................................... 300°C


Description

The X24C01 is a CMOS 1024 bit serial E2PROM, internally organized as 128 x 8. The X24C01 features a serial interface and software protocol allowing operation on a simple two wire bus.

Xicor E2PROMs are designed and tested for applications requiring extended endurance. Inherent data retention is greater than 100 years.
