Product Details

Description



Features:

• 2.7V to 5.5V Power Supply
• 128 Bit Serial E2PROM
• Low Power CMOS
-Active Current Less Than 3mA
-Standby Current Less Than 50mA
• Internally Organized 16 x 8
• 2 Wire Serial Interface
-Bidirectional Data Transfer Protocol
• Byte Mode Write
• Self Timed Write Cycle
-Typical Write Cycle Time of 5ms
• Push/Pull Output
• High Reliability
-Endurance: 100,000 Cycles
-Data Retention: 100 Years
• Available Packages
-8-Lead MSOP
-8-Lead PDIP
-8-Lead SOIC

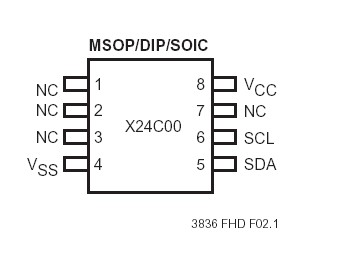

Pinout

  Connection Diagram


Specifications

Temperature under Bias
X24C00............................................. 65°C to +135°C
Storage Temperature ....................... 65°C to +150°C
Voltage on any Pin with
Respect to VSS ............................................. 1V to +7V
D.C. Output Current ..................................................5mA
Lead Temperature
(Soldering, 10 seconds) ....................................... 300°C
Stresses above those listed under "Absolute Maximum
Ratings" may cause permanent damage to the device. This is a stress rating only and the functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.




Description

The X24C00 is a CMOS 128 bit serial E2PROM, internally organized as 16 x 8. The X24C00 features a serial interface and software protocol allowing operation on a simple two wire bus.

Xicor E2PROMs are designed and tested for applications requiring extended endurance. Inherent data retention is greater than 100 years.

The X24C00 is fabricated with Xicor's Advanced CMOS Floating Gate technology.
