Product Details

Description



Features:

• Fast Access Time: 35ns, 45ns, 55ns
• High Reliability
   -Endurance: 1,000,000 Nonvolatile Store Operations
   -Retention: 100 Years Minimum
• Power-on Recall
   -E2PROM Data Automatically Recalled Into SRAM Upon Power-up
• AUTOSTORE™ NOVRAM
   -User Enabled Option
   -Automatically Stores SRAM Data Into the E2PROM Array When VCC Low Threshold is Detected
   -Open Drain AUTOSTORE Status Output Pin
• Software Data Protection
   -Locks Out Inadvertent Store Operations
• Low Power CMOS
   -Standby: 250A
• Infinite E2PROM Array Recall, and RAM Read and Write Cycles
• Upward compatible with X20C16 (16K)

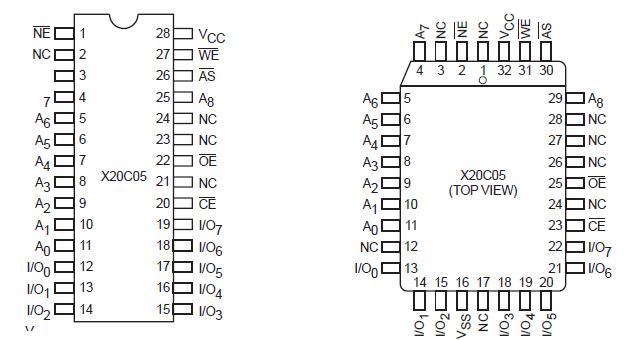

Pinout

Connection Diagram


Specifications

Temperature under Bias .................. 65°C to +135°C
Storage Temperature ....................... 65°C to +150°C
Voltage on any Pin with
      Respect to VSS ....................................... 1V to +7V
D.C. Output Current ................................................ 10mA
Lead Temperature (Soldering, 10 seconds)........... 300°C


Description

The Xicor X20C05 is a 512 x 8 NOVRAM featuring a high-speed static RAM overlaid bit-for-bit with a nonvolatile electrically erasable PROM (E2PROM). The X20C05 is fabricated with advanced CMOS floating gate technology to achieve high speed with low power and wide power-supply margin. The X20C05 features the JEDEC approved pinout for byte-wide memories,compatible with industry standard RAMs, ROMs,EPROMs, and E2PROMs.

The NOVRAM design allows data to be easily transferred from RAM to E2PROM (store) and E2PROM to RAM (recall). The store operation of X20C05 is completed in 5ms or less and the recall operation is completed in 5ms or less.
