X20C04

Features: • High Reliability -Endurance: 1,000,000 Nonvolatile Store Operations -Retention: 100 Years Minimum• Power-on Recall -E2PROM Data Automatically Recalled Into SRAM Upon Power-up• Lock Out Inadvertent Store Operations• Low Power CMOS -Standby: 250A• Infinite E...

product image

X20C04 Picture
See larger image
SeekIC No. : 004547058 Detail

X20C04: Features: • High Reliability -Endurance: 1,000,000 Nonvolatile Store Operations -Retention: 100 Years Minimum• Power-on Recall -E2PROM Data Automatically Recalled Into SRAM Upon Power-up...

X20C04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X20C04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Reliability
   -Endurance: 1,000,000 Nonvolatile Store Operations
   -Retention: 100 Years Minimum
• Power-on Recall
   -E2PROM Data Automatically Recalled Into SRAM Upon Power-up
• Lock Out Inadvertent Store Operations
• Low Power CMOS
   -Standby: 250A
• Infinite E2PROM Array Recall, and RAM Read and Write Cycles
• Compatible with X2004


Pinout

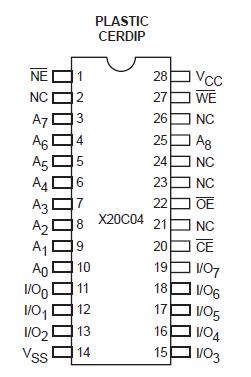

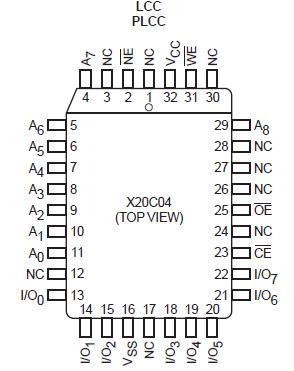

Connection Diagram Connection Diagram


Specifications

Temperature under Bias .................. 65°C to +135°C
Storage Temperature ....................... 65°C to +150°C
Voltage on any Pin with
      Respect to VSS ....................................... 1V to +7V
D.C. Output Current ............................................... 10mA
Lead Temperature (Soldering, 10 seconds).......... 300°C


Description

The Xicor X20C04 is a 512 x 8 NOVRAM featuring a static RAM overlaid bit-for-bit with a nonvolatile electrically erasable PROM (E2PROM). The X20C04 is fabricated with advanced CMOS floating gate technology to achieve low power and wide power-supply margin. The X20C04 features the JEDEC approved pinout for bytewide memories, compatible with industry standard RAMs,ROMs, EPROMs, and E2PROMs.

The NOVRAM design allows data to be easily transferred from RAM to E2PROM (store) and E2PROM to RAM (recall). The store operation of X20C04 is completed in 5ms or less and the recall operation is completed in 5ms or less.

Xicor NOVRAMS are designed for unlimited write operations to RAM, either from the host or recalls from E2PROM, and a minimum 1,000,000 store operations to the E2PROM. Data retention is specified to be greater than 100 years.
