Position: Home  > All Categories> Integrated Circuits (ICs) > WMS512K8V-XXX

WMS512K8V-XXX

Features: Access Times 15, 17, 20nsRevolutionary, Center Power/Ground PinoutJEDEC Approved36 lead Ceramic SOJ (Package 100)36 lead Ceramic Flat Pack (Package 226)Evolutionary, Corner Power/Ground PinoutJEDEC Approved32 pin Ceramic DIP (Package 300)32 lead Ceramic SOJ (Package 101)**32 lead Ceramic...

product image

WMS512K8V-XXX Picture
See larger image
SeekIC No. : 004546286 Detail

WMS512K8V-XXX: Features: Access Times 15, 17, 20nsRevolutionary, Center Power/Ground PinoutJEDEC Approved36 lead Ceramic SOJ (Package 100)36 lead Ceramic Flat Pack (Package 226)Evolutionary, Corner Power/Ground Pi...

WMS512K8V-XXX Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
WMS512K8V-XXX
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Access Times 15, 17, 20ns
Revolutionary, Center Power/Ground Pinout
JEDEC Approved
36 lead Ceramic SOJ (Package 100)
36 lead Ceramic Flat Pack (Package 226)
Evolutionary, Corner Power/Ground Pinout
JEDEC Approved
32 pin Ceramic DIP (Package 300)
32 lead Ceramic SOJ (Package 101)**
32 lead Ceramic Flat Pack (Package 220)**
32 pin, Rectangular Ceramic Leadless Chip Carrier(Package 601)
Low Power CMOS
Low Voltage Operation:
3.3V   10% Power Supply
Commercial, Industrial and Military Temperature Range
TTL Compatible Inputs and Outputs
Fully Static Operation:
No clock or refresh required.
Three State Output.

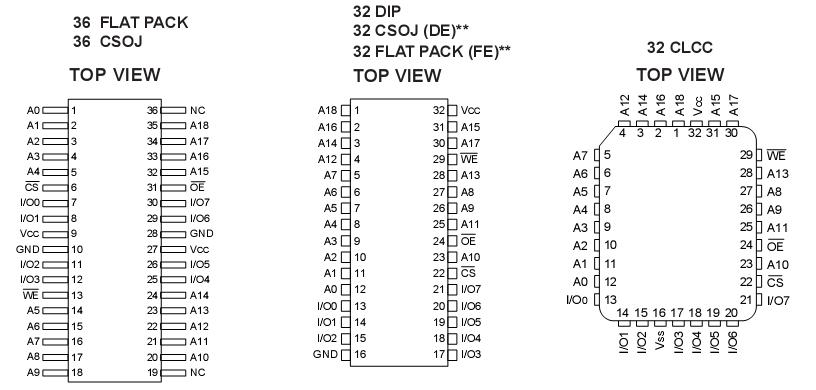

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Operating Temperature
TA
-55
+125
C
Storage Temperature
TSTG
-65
+150
C
Signal Voltage Relative to GND
VG
-0.5
4.6
V
Junction Temperature
TJ

150
C
Supply Voltage
VCC
-0.5
4.6
V
