Product Details

Description



Features:

Access Times 15, 17, 20ns
Revolutionary, Center Power/Ground Pinout JEDEC Approved
  • 36 lead Ceramic SOJ (Package 100)
  • 36 lead Ceramic Flat Pack (Package 226)
Evolutionary, Corner Power/Ground Pinout JEDEC Approved
  • 32 pin Ceramic DIP (Package 300)
  • 32 lead Ceramic SOJ (Package 101)
  • 32 lead Ceramic Flat Pack (Package 220)
Low Voltage Operation:
  • 3.3V ± 10% Power Supply
BiCMOS:
  • Radiation Tolerant with Epitaxial Layer Die
Commercial and Industrial Temperature Ranges
TTL Compatible Inputs and Outputs
Fully Static Operation:
  • No clock or refresh required.
Three State Output


Pinout

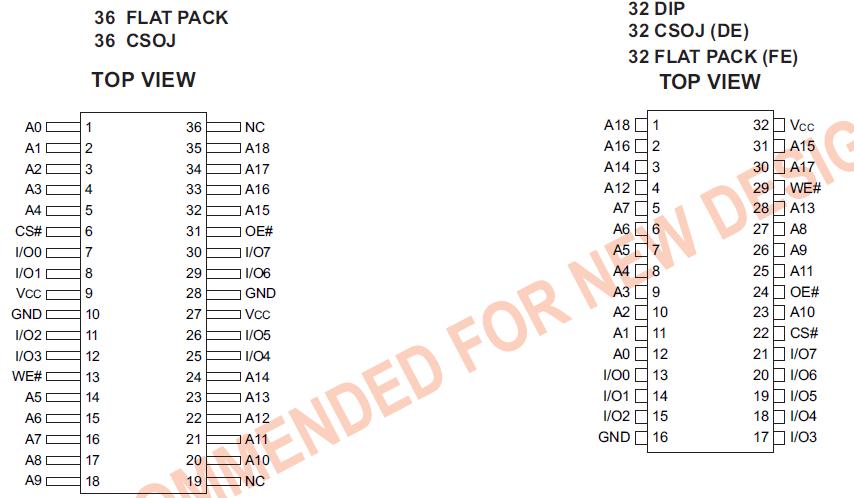

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Operating Temperature TA -40 +85 °C
Storage Temperature TSTG -65 +150 °C
Signal Voltage Range to GND VG -0.5 4.6 V
Junction Temperature TJ   150 °C
Supply Voltage VCC -0.5 4.6 V
