Product Details

Description



Features:

· DTMF/pulse switchable dialer
· Two by 32 digit redial and save memory
· Ten by 16 digit two-touch direct memory
· Redial memory cascadable with normal dialing; dialing length is unlimited, but if length
oversteps 32 digits the redial function is inhibited
· Pulse-to-tone (*/T) keypad for long distance call operation
· Uses 5 × 5 keyboard
· Easy operation with redial, flash, pause and */T keypads
· Flash, pause, P®T (Pulse-to-tone) can be stored as a digit in memory
· Dialing rate (10, 20 ppS ) selected by bonding option
· On-hook debounce time: 150 msec.
· Minimum tone output duration: 93 msec.
· Minimum intertone pause: 93 msec.
· Flash break time (73, 100, 300, 600 msec.) selectable by keypad, and the pause time is 1 sec.
· On-chip power-on reset
· Uses 3.579545 MHz crystal or ceramic resonator
· Packaged in 18-pin plastic DIP
· The different dialers in the W91440N series are shown in the following table


Pinout

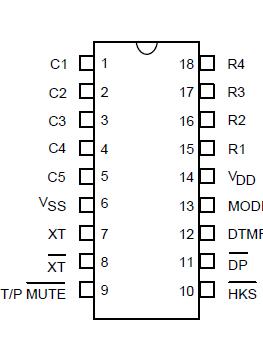

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
DC Supply Voltage
VDD-VSS
-0.3 to +7.0
V
Input/Output Voltage
VIL
VSS -0.3
V
VIH
VDD +0.3
V
VOL
VSS -0.3
V
VOH
VDD +0.3
V
Power Dissipation
PD
120
mW
Operation Temperature
TOPR
-20 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W91440N series are Si-gate CMOS ICs that provide the necessary signals for either tone or pulse dialing. The W91440N series features save memory and a 10 by 16 digit automatic dialing memory.
