W91410

Features: ` DTMF/Pulse switchable dialer` Two by 32 digits for redial and save memory` Pulse-to-tone (PT) keypad for long distance call operation` Break/Make ratio is selectable by pin option` Uses 4 *4 keyboard` Easy operation with redial, flash, pause, and PT keypads` Flash, pause, PT (Pulse-to-...

product image

W91410 Picture
See larger image
SeekIC No. : 004545277 Detail

W91410: Features: ` DTMF/Pulse switchable dialer` Two by 32 digits for redial and save memory` Pulse-to-tone (PT) keypad for long distance call operation` Break/Make ratio is selectable by pin option` Uses ...

W91410 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W91410
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` DTMF/Pulse switchable dialer
` Two by 32 digits for redial and save memory
` Pulse-to-tone (PT) keypad for long distance call operation
` Break/Make ratio is selectable by pin option
` Uses 4 *4 keyboard
` Easy operation with redial, flash, pause, and PT keypads
` Flash, pause, PT (Pulse-to-tone) can be stored as a digit in memory
` Minimum tone output duration: 100 mS
` Minimum intertone pause: 100 mS
` On-chip power-on reset
` Uses 3.579545 MHz crystal or ceramic resonator
` Packaged in 18-pin plastic DIP
` The different dialers in the W91410 series are shown in the following table:

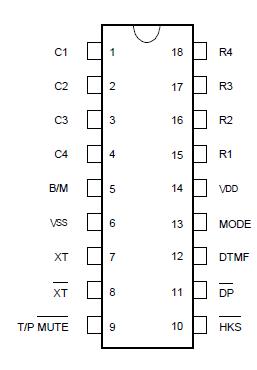

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
DC Supply Voltage
VDD-VSS
-0.3 to +7.0
V
Input/Output Voltage
VIL
VSS -0.3
V
VIH
VDD +0.3
V
VOL
VSS -0.3
V
VOH
VDD +0.3
V
Power Dissipation
PD
120
mW
Operation Temperature
TOPR
-20 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W91410 series are monolithic ICs that provide the necessary signals for either pulse or tone dialing. The W91410 series feature a redial and save memory.
