Features: * Full duplex 2B + D S/T-interface transceiver compliant with ITU-T I.430 Recommendation* One D channel HDLC controller - Maskable address recognition - Transparent (HDLC) mode - FIFO buffer (2 x 128 bytes)* Two B channel HDLC controllers - Maskable address recognition - Bit rate options...

product image

W6692 Picture
See larger image
SeekIC No. : 004544904 Detail

W6692: Features: * Full duplex 2B + D S/T-interface transceiver compliant with ITU-T I.430 Recommendation* One D channel HDLC controller - Maskable address recognition - Transparent (HDLC) mode - FIFO buff...

W6692 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W6692
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Full duplex 2B + D S/T-interface transceiver compliant with ITU-T I.430 Recommendation
* One D channel HDLC controller
   - Maskable address recognition
   - Transparent (HDLC) mode
   - FIFO buffer (2 x 128 bytes)
* Two B channel HDLC controllers
   - Maskable address recognition
   - Bit rate options : 56 or 64 kbps
   - Transparent (HDLC mode) or extended transparent mode (clear channel)
   - FIFO buffer (2 x 128 bytes) per B channel
* Two PCM codec interfaces for speech and POTS application
* Various B channel switching capabilities
* GCI master/slave interface
* Built in PCI 2.2 slave mode circuit
* ACPI capability : PCI 2.2 and PCI Power Management 1.1 compliant
* Serial EEPROM interface for PCI configuration
* Peripheral control pins
* 8-bit microprocessor interface when PCI is disabled for TA application
* Digital : 5V or 3.3V, analog : 5V
* Advanced CMOS technology
* Low power consumption
* 100-pin QFP package


Pinout

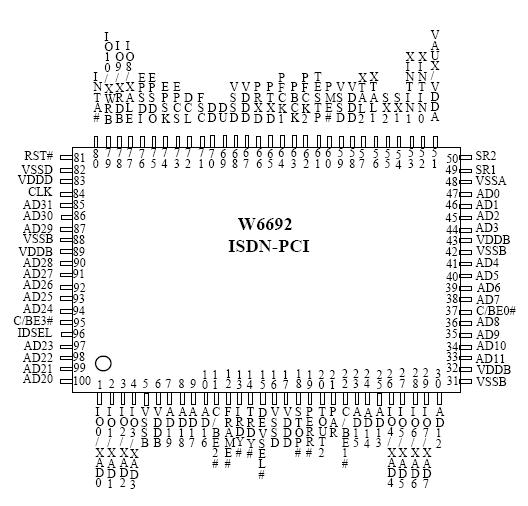

Connection Diagram
