W6690

Features: · Full duplex 2B + D S/T-interface transceiver compatible with ITU-T I.430 Recommendation- Four wire operation- Received clock recovery- Layer 1 activation/deactivation procedures- D channel access control- Supports multiframe synchronization· Supports LAPD protocol- Flag generation/reco...

product image

W6690 Picture
See larger image
SeekIC No. : 004544902 Detail

W6690: Features: · Full duplex 2B + D S/T-interface transceiver compatible with ITU-T I.430 Recommendation- Four wire operation- Received clock recovery- Layer 1 activation/deactivation procedures- D chann...

W6690 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W6690
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Full duplex 2B + D S/T-interface transceiver compatible with ITU-T I.430 Recommendation
- Four wire operation
- Received clock recovery
- Layer 1 activation/deactivation procedures
- D channel access control
- Supports multiframe synchronization
· Supports LAPD protocol
- Flag generation/recognition
- Bit stuffing (zero insertion/deletion)
- Frame Check Sequence (FCS) generation/check
- Maskable address recognition
- FIFO buffer (2 x 64 bytes)
· Two B channel HDLC controllers
- Maskable address recognition
- Bit rate options: 56 or 64 Kbps
- Transparent or extended transparent mode
- FIFO buffer (2 ´ 64 bytes) per B channel
· Two PCM codec interfaces for speech and POTS application
· Various B channel switching capabilities
· Serial EEPROM interface for ISA plug and play configuration
· Glueless ISA plug and play interface for passive card application
· Direct ISA compatible or 8-bit microprocessor interfaces for active card and Terminal Adaptor ( applications
· +5 volt power supply
· Advanced CMOS technology
· Low power consumption


Pinout

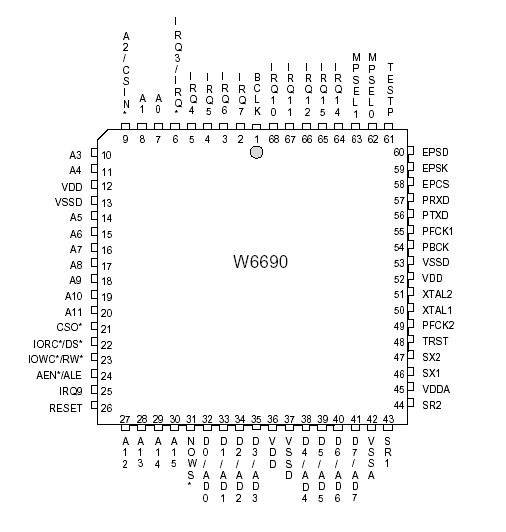

Connection Diagram


Description

The Winbond's single chip ISDN S/T interface controller (W6690) is an all-in-one device suitable for ISDN Internet access. Three HDLC controllers are incorporated in the chip, one for D channel and the other two for B channels. These HDLC controllers facilitate efficient access to signalling and data services. The PCM codec interface provides voice service or other services. For PC ISA bus add-on card application, the built-in plug and play controller is used for automatic card identification and resource assignment. The plug and play controller can be disabled for traditional ISA card applications. Furthermore, an Intel or Motorola 8-bit micro-controller compatible interface is provided.
