W42C27

Features: • Supports 3.3V and 5V operation• W42C27-36 provides the same functionality but stronger output drive than the W42C27-13 (obsolete)• Proprietary crystal oscillator circuitry provides low REF jitter, excellent duty cycle• Integral PLL loop filter components ensure ...

product image

W42C27 Picture
See larger image
SeekIC No. : 004544735 Detail

W42C27: Features: • Supports 3.3V and 5V operation• W42C27-36 provides the same functionality but stronger output drive than the W42C27-13 (obsolete)• Proprietary crystal oscillator circui...

W42C27 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W42C27
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports 3.3V and 5V operation
• W42C27-36 provides the same functionality but stronger output drive than the W42C27-13 (obsolete)
• Proprietary crystal oscillator circuitry provides low REF jitter, excellent duty cycle
• Integral PLL loop filter components ensure stable PLL operation in noisy system environments
• Output clocks are TTL or CMOS-level compatible
• Custom options available with metal layer changes
• Low power CMOS design available in:
   -8-pin SOIC (Small Outline Integrated Circuit)


Pinout

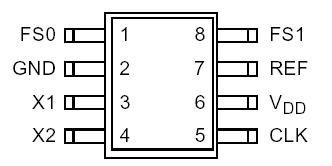

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDD, VIN Voltage on any pin with respect to GND 0.5 to +7.0 V
TSTG Storage Temperature 65 to +150 °C
TA Operating Temperature 0 to +70 °C
TB Ambient Temperature under Bias 55 to +125 °C



Description

The W42C27 is a general-purpose device that features a single phase-locked loop. Through the use of metal masks, the chip can be tailored to a wide variety of applications.

The W42C27 can have up to three output frequencies. A wide variety of input functions are available through mask options.
