Product Details

Description



Features:

· Single power supply voltage: 5.0V ±10%
· High speed access time: 70/90 nS (max.)
· Read operating current: 30 mA (max.)
· Erase/Programming operating current: 30 mA (max.)
· Standby current: 20 mA (max.)
· +12V erase/programming voltage
· Fully static operation
· All inputs and outputs directly TTL/CMOS compatible
· Three-state outputs
· Available packages: 32-pin 600 mil DIP, 32-lead PLCC and 32-lead STSOP


Pinout

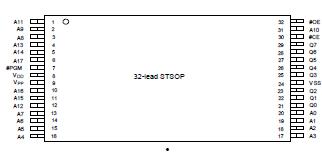

Connection Diagram


Specifications

PARAMETER
RATING
UNIT
Operation Temperature
0 to +70
°C
Storage Temperature
-65 to +125
°C
Voltage on all Pins with Respect to Ground Except VDD, VPP and A9 Pins
-0.5 to VDD +0.5
V
Voltage on VDD Pin with Respect to Ground
-0.5 to +7.0
V
Voltage on VPP Pin with Respect to Ground
-0.5 to +14.5
V
Voltage on A9 Pin with Respect to Ground
-0.5 to +14.5
V
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W27E02 is a high speed, low power consumption Electrically Erasable and Programmable Read Only Memory organized as 262,144 ´ 8 bits. It requires only one supply in the range of 5.0V ± 10% in normal read mode. The W27E02 provides an electrical chip erase function.
