W26020A

Features: · High speed access time: 20/25 nS (max.)· Low power consumption: - Active: 1.5W (max.)· Single +5V power supply· Fully static operation - No clock or refreshing· All inputs and outputs directly TTL compatible· Three-state outputs· Data byte control - LB (I/O1-I/O8), UB (I/O9-I/O16)· Ava...

product image

W26020A Picture
See larger image
SeekIC No. : 004544535 Detail

W26020A: Features: · High speed access time: 20/25 nS (max.)· Low power consumption: - Active: 1.5W (max.)· Single +5V power supply· Fully static operation - No clock or refreshing· All inputs and outputs di...

W26020A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W26020A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High speed access time: 20/25 nS (max.)
· Low power consumption: - Active: 1.5W (max.)
· Single +5V power supply
· Fully static operation - No clock or refreshing
· All inputs and outputs directly TTL compatible
· Three-state outputs
· Data byte control - LB (I/O1-I/O8), UB (I/O9-I/O16)
· Available packages: 44-pin type two TSOP

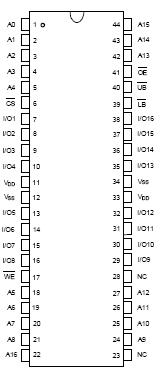

Pinout

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply Voltage to VSS Potential -0.5 to +7.0 V
Input/Output to VSS Potential -0.5 to VDD +0.5 V
Allowable Power Dissipation 1.5 W
Storage Temperature -65 to +150 °C
Operating Temperature 0 to +70 °C




Description

The W26020A is a high-speed, low-power CMOS static RAM organized as 131,072 ´ 16 bits that operates on a single 5-volt power supply. This device is manufactured using Winbond's high performance CMOS technology.

The W26020A has an active low chip select, separate upper and lower byte selects, and a fast output enable. No clock or refreshing is required. Separate byte select controls (LB and UB ) allow individual bytes to be written and read. LB controls I/O1-I/O8, the lower byte. UB controls I/O9- I/O16, the upper byte. This device is well suited for use in high-density, high-speed system applications.
