VT86C100A

Features: * Single chip Fast Ethernet controller for PCI bus interface -- compliant to PCI v2.1 with optional delay transaction and sub-vendor, sub-system- ID -- Provides a direct connection to PCI bus -- Supports two network ports : 10/100 M MII interface* High performance PCI mastering structure...

product image

VT86C100A Picture
See larger image
SeekIC No. : 004543869 Detail

VT86C100A: Features: * Single chip Fast Ethernet controller for PCI bus interface -- compliant to PCI v2.1 with optional delay transaction and sub-vendor, sub-system- ID -- Provides a direct connection to PCI ...

VT86C100A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VT86C100A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Single chip Fast Ethernet controller for PCI bus interface
  -- compliant to PCI v2.1 with optional delay transaction and sub-vendor, sub-system- ID
  -- Provides a direct connection to PCI bus
  -- Supports two network ports : 10/100 M MII interface
* High performance PCI mastering structure
  -- VIA self-define 128 bytes memory I/O or register I/O based command and status register
  -- Software oriented chain structure description to minimize hardware complexity
  -- Include on chip bus master DMA with programmable burst length for low CPU utilization
  -- Dynamic transmit packet auto queuing for back auto queuing for bac for back to back transmissin
  -- Programmable activity polling intervals for description DMA
  -- Programmable DMA arbitration priority to minimize overflow under flow condition
  -- Support early receive and early transmit interrupt for software parallel processing
  -- Interrupt controllable by receive/transmit descriptor list for saving interrupt service time
* Provides standard 100-M bits MII interface
  -- Support 100Base-TX with CAT5 UTP, STP and fiber cables
  -- Support 100Base-T4 with CAT3, CAT4, CAT 5 UTP, STP
* 10/100Mhz full duplex, half duplex operation
* Contains two deeper 2K bytes FIFO for receive and transmit controller both supports bursts of up to full Ethernet length
  -- Programmable receive and transmit FIFO threshold control for optimize PCI throughput
* Flexible dynamically load EEPROM algorithm.
  -- Load after power-up
  -- Dynamic auto reload
  -- Embedded programming for configure modification
  -- Dynamic direct programming for manufacturing
* Support physical, Broadcast, Multicast address filtering using hashing function
* Support Magic packet and wake on address filtering
* Support external Bootrom up to 64K bytes no external address latch
* Software controllable power down feature
* Single +5V supply, 0.5um standard CMOS technology
* 128 pin PQFP package


Pinout

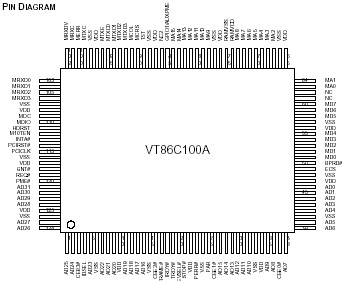

Connection Diagram


Description

The VT86C100A Rhine ACPI PCI bus master 100 M FAST Ethernet controller is CMOS VLSI designed for easy implementation of CSMA/CD IEEE 802.3u 100M local area networks. Significant features include: twisted-pair interface, PCI Plug&Play compatibility, 32 bit bus mastering, powerful buffer management and Early Interrupt Receive/Transmit.

The VT86C100A integrates the entire bus interface of PCI systems. Setting hardware jumpers or software configures the VT86C100A bus interface. The VT86C100A also complies with PCI specification v2.1.. The VT86C100A supports the Media Independent Interface (MII) network interface.
