VP1058

Features: ·8-Bit Resolution·25MHz Conversion Rate·60MHz 3dB Analog Input Bandwidth·Single +5V Supply Operation·Low Power Consumption (Typically 670mW)·+3V to +5V Analog Input Range·Selectable Data Format·TTL Compatible·Direct Replacement for TDC 1058 or CXA 1096P·Low Cost·No Missing Codes - Guaran...

product image

VP1058 Picture
See larger image
SeekIC No. : 004542548 Detail

VP1058: Features: ·8-Bit Resolution·25MHz Conversion Rate·60MHz 3dB Analog Input Bandwidth·Single +5V Supply Operation·Low Power Consumption (Typically 670mW)·+3V to +5V Analog Input Range·Selectable Data F...

VP1058 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VP1058
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·8-Bit Resolution
·25MHz Conversion Rate
·60MHz 3dB Analog Input Bandwidth
·Single +5V Supply Operation
·Low Power Consumption (Typically 670mW)
·+3V to +5V Analog Input Range
·Selectable Data Format
·TTL Compatible
·Direct Replacement for TDC 1058 or CXA 1096P
·Low Cost
·No Missing Codes - Guaranteed


Application

·Digital Television
·Computing
·Radar
·Medical Imaging
·Nucleonics
·Low-Cost, High-Speed Data Conversion




Pinout

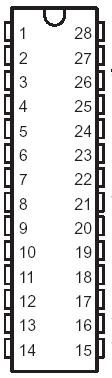

Connection Diagram


Specifications

Supply voltage......................................................... +7V
Analog input, AIN VCC ............................................+0.5
Reference voltage VRT, VRB VCC............................ +0.5
Reference voltage VRT, VRB ....................................2.5V
Digital inputs.............................................................VCC
Mid-ref input current ............................-50mA to +50mA
Digital output current ...........................-20mA to +20mA
Voltage between AGND and DGND ..........-0.5V to +0.5V
Voltage between AVCC and DVCC... .......-0.5V to +0.5V
